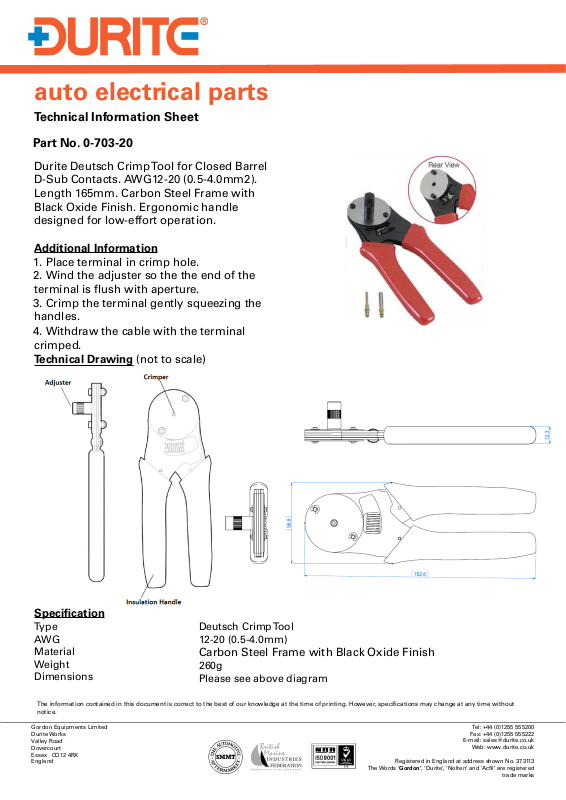

Durite 0-703-20 User guide

auto electrical parts

Technical Information Sheet

Part No. 0-703-20

Durite Deutsch Crimp Tool for Closed Barrel
D-Sub Contacts. AWG12-20 (0.5-4.0mm2).
Length 165mm. Carbon Steel Frame with
Black Oxide Finish. Ergonomic handle
designed for low-effort operation.

Additional Information

1. Place terminal in crimp hole.

2. Wind the adjuster so the the end of the

terminal is flush with aperture.

3. Crimp the terminal gently squeezing the

handles.

4. Withdraw the cable with the terminal
crimped.

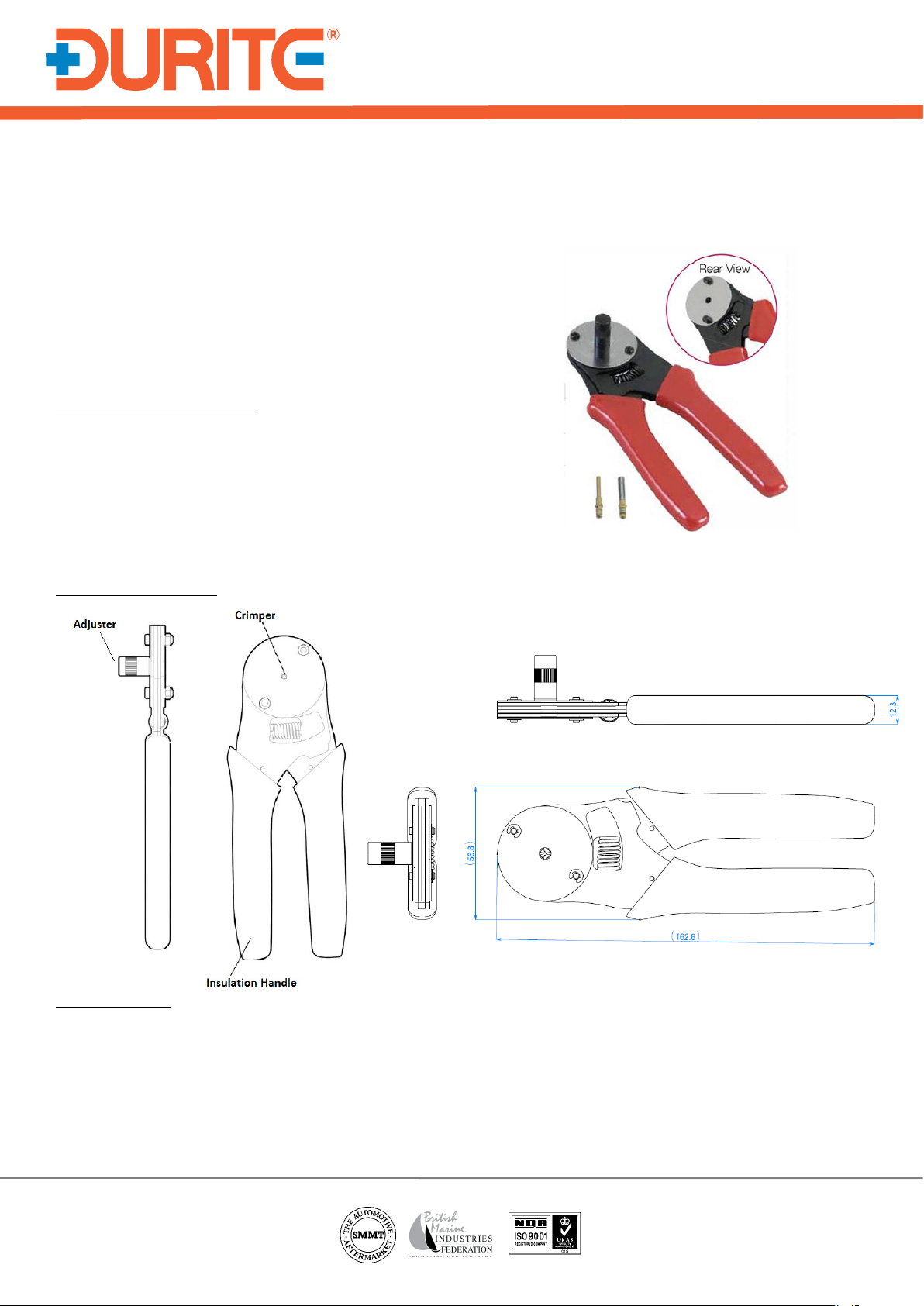

Technical Drawing (not to scale)

Specication

Type

AWG
Material
Weight
Dimensions

The information contained in this document is correct to the best of our knowledge at t he time of printing. However, specications may change at any time without

notice.

Gordon Equipments Limited
Durite Works

Valley Road

Dovercourt
Essex CO12 4RX
England

Deutsch Crimp Tool
12-20 (0.5-4.0mm)

Carbon Steel Frame with Black Oxide Finish

260g
Please see above diagram
