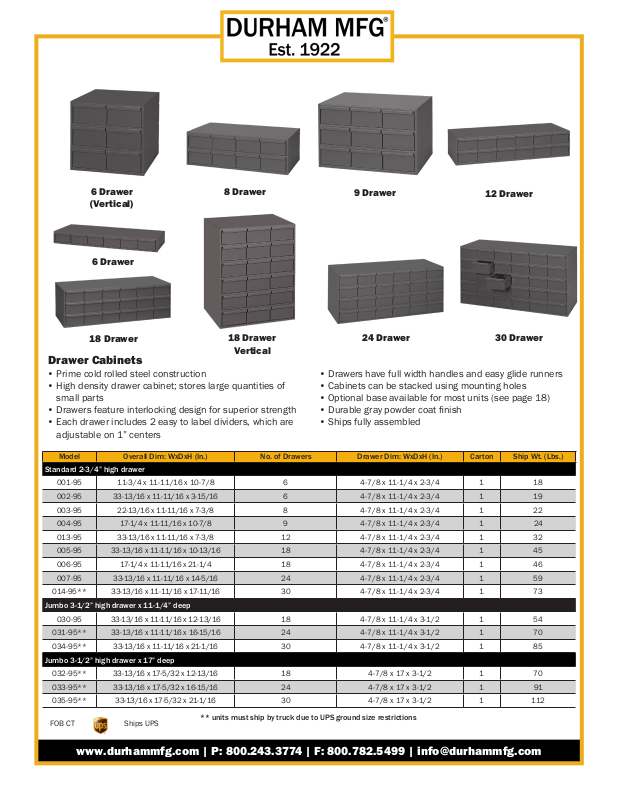

6 Drawer
(Vertical)
6 Drawer
8 Drawer
9 Drawer
12 Drawer
18 Drawer
18 Drawer
24 Drawer
30 Drawer
Vertical
Drawer Cabinets
• Prime cold rolled steel construction
• High density drawer cabinet; stores large quantities of
small parts
• Drawers feature interlocking design for superior strength
• Each drawer includes 2 easy to label dividers, which are
adjustable on 1” centers
Model Overall Dim: WxDxH (In.) No. of Drawers Drawer Dim: WxDxH (In.) Carton Ship Wt. (Lbs.)
Standard 2-3/4” high drawer
001-95 11-3/4 x 11-11/16 x 10-7/8 6 4-7/8 x 11-1/4 x 2-3/4 1 18
002-95 33-13/16 x 11-11/16 x 3-15/16 6 4-7/8 x 11-1/4 x 2-3/4 1 19
003-95 22-13/16 x 11-11/16 x 7-3/8 8 4-7/8 x 11-1/4 x 2-3/4 1 22
004-95 17-1/4 x 11-11/16 x 10-7/8 9 4-7/8 x 11-1/4 x 2-3/4 1 24
013-95 33-13/16 x 11-11/16 x 7-3/8 12 4-7/8 x 11-1/4 x 2-3/4 1 32
005-95 33-13/16 x 11-11/16 x 10-13/16 18 4-7/8 x 11-1/4 x 2-3/4 1 45
006-95 17-1/4 x 11-11/16 x 21-1/4 18 4-7/8 x 11-1/4 x 2-3/4 1 46
007-95 33-13/16 x 11-11/16 x 14-5/16 24 4-7/8 x 11-1/4 x 2-3/4 1 59
014-95** 33-13/16 x 11-11/16 x 17-11/16 30 4-7/8 x 11-1/4 x 2-3/4 1 73
Jumbo 3-1/2” high drawer x 11-1/4” deep
030-95 33-13/16 x 11-11/16 x 12-13/16 18 4-7/8 x 11-1/4 x 3-1/2 1 54
031-95** 33-13/16 x 11-11/16 x 16-15/16 24 4-7/8 x 11-1/4 x 3-1/2 1 70
034-95** 33-13/16 x 11-11/16 x 21-1/16 30 4-7/8 x 11-1/4 x 3-1/2 1 85
Jumbo 3-1/2” high drawer x 17” deep
032-95** 33-13/16 x 17-5/32 x 12-13/16 18 4-7/8 x 17 x 3-1/2 1 70
033-95** 33-13/16 x 17-5/32 x 16-15/16 24 4-7/8 x 17 x 3-1/2 1 91
035-95** 33-13/16 x 17-5/32 x 21-1/16 30 4-7/8 x 17 x 3-1/2 1 112
FOB CT Ships UPS
** units must ship by truck due to UPS ground size restrictions
• Drawers have full width handles and easy glide runners
• Cabinets can be stacked using mounting holes
• Optional base available for most units (see page 18)
• Durable gray powder coat nish
• Ships fully assembled
www.durhammfg.com | P: 800.243.3774 | F: 800.782.5499 | info@durhammfg.com
DRAWER CABINET SYSTEM
(Fully assembled with base)
Model
017-95
Model
024-95
Model
019-95
Model
025-95
Drawer Cabinet System (Fully assembled with base)
• Prime cold rolled steel construction
• High density drawer cabinet; easy to store large quantities
of small parts
• Drawers feature interlocking design for superior strength
• Drawers have full width handles and easy glide runners
• Each drawer includes 2 dividers
• Dividers are movable on 1” centers and easy to label
Model
022-95
Model
026-95
• Vertical supports inside the cabinet provide added
strength
• Fully welded base is included and raises unit 5-1/4” above
the oor
• Ships fully assembled
• Durable gray powder coat nish
Model Overall Dim: WxDxH (In.) Drawers Drawer Dim: WxDxH (In.) Carton Ship Wt. (Lbs.)
2-3/4” high drawers
017-95 34 x 12-1/4 x 33-3/4 48 4-7/8 x 11-1/4 x 2-3/4 1 162
019-95 34 x 12-1/4 x 48 72 4-7/8 x 11-1/4 x 2-3/4 1 224
022-95 34 x 12-1/4 x 62-1/4 96 4-7/8 x 11-1/4 x 2-3/4 1 276
3-1/2” high drawers
024-95 34 x 12-1/4 x 26-1/4 30 4-7/8 x 11-1/4 x 3-1/2 1 136
027-95 34 x 17-3/4 x 26-1/4 30 4-7/8 X 17 X 3-1/2 1 153
025-95 34 x 12-1/4 x 47-5/16 60 4-7/8 x 11-1/4 x 3-1/2 1 214
028-95 34 x 17-3/4 x 47-5/16 60 4-7/8 X 17 X 3-1/2 1 268
026-95 34 x 12-1/4 x 68-3/8 90 4-7/8 x 11-1/4 x 3-1/2 1 291
029-95 34 x 17-3/4 x 68-3/8 90 4-7/8 X 17 X 3-1/2 1 332
FOB CT
www.durhammfg.com | P: 800.243.3774 | F: 800.782.5499 | info@durhammfg.com
