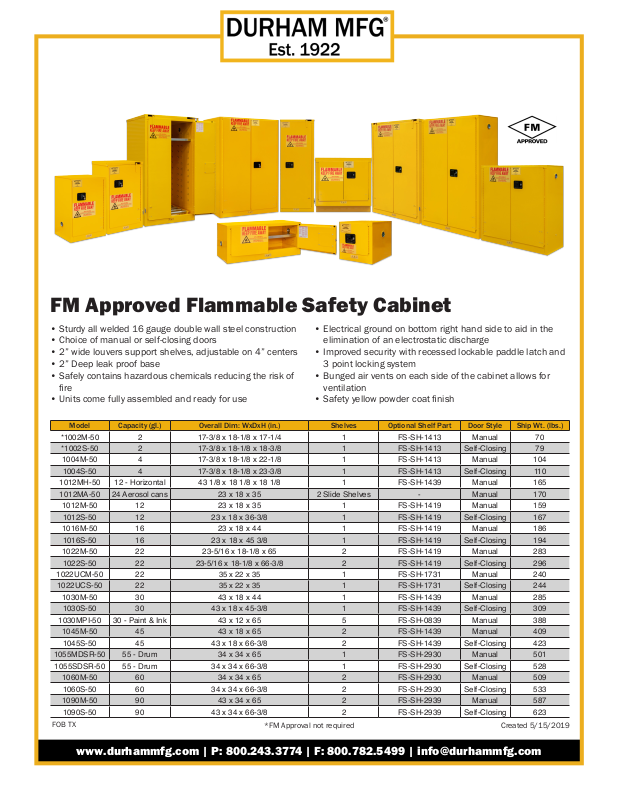

FM Approved Flammable Safety Cabinet
• Sturdy all welded 16 gauge double wall steel construction
• Choice of manual or self-closing doors
• 2” wide louvers support shelves, adjustable on 4” centers
• 2” Deep leak proof base
• Safely contains hazardous chemicals reducing the risk of
re
• Units come fully assembled and ready for use
Model Capacity (gl.) Overall Dim: WxDxH (in.) Shelves Optional Shelf Part Door Style Ship Wt. (lbs.)
*1002M-50 2 17-3/8 x 18-1/8 x 17-1/4 1 FS-SH-1413 Manual 70
*1002S-50 2 17-3/8 x 18-1/8 x 18-3/8 1 FS-SH-1413 Self-Closing 79
1004M-50 4 17-3/8 x 18-1/8 x 22-1/8 1 FS-SH-1413 Manual 104
1004S-50 4 17-3/8 x 18-1/8 x 23-3/8 1 FS-SH-1413 Self-Closing 110
1012MH-50 12 - Horizontal 43 1/8 x 18 1/8 x 18 1/8 1 FS-SH-1439 Manual 165
1012MA-50 24 Aerosol cans 23 x 18 x 35 2 Slide Shelves
1012M-50 12 23 x 18 x 35 1 FS-SH-1419 Manual 159
1012S-50 12 23 x 18 x 36-3/8 1 FS-SH-1419 Self-Closing 167
1016M-50 16 23 x 18 x 44 1 FS-SH-1419 Manual 186
1016S-50 16 23 x 18 x 45 3/8 1 FS-SH-1419 Self-Closing 194
1022M-50 22 23-5/16 x 18-1/8 x 65 2 FS-SH-1419 Manual 283
1022S-50 22 23-5/16 x 18-1/8 x 66-3/8 2 FS-SH-1419 Self-Closing 296
1022UCM-50 22
1022UCS-50 22
1030M-50 30 43 x 18 x 44 1 FS-SH-1439 Manual 285
1030S-50 30 43 x 18 x 45-3/8 1 FS-SH-1439 Self-Closing 309
1030MPI-50 30 - Paint & Ink 43 x 12 x 65 5 FS-SH-0839 Manual 388
1045M-50 45 43 x 18 x 65 2 FS-SH-1439 Manual 409
1045S-50 45 43 x 18 x 66-3/8 2 FS-SH-1439 Self-Closing 423
1055MDSR-50 55 - Drum 34 x 34 x 65 1 FS-SH-2930 Manual 501
1055SDSR-50 55 - Drum 34 x 34 x 66-3/8 1 FS-SH-2930 Self-Closing 528
1060M-50 60 34 x 34 x 65 2 FS-SH-2930 Manual 509
1060S-50 60 34 x 34 x 66-3/8 2 FS-SH-2930 Self-Closing 533
1090M-50 90 43 x 34 x 65 2 FS-SH-2939 Manual 587
1090S-50 90 43 x 34 x 66-3/8 2 FS-SH-2939 Self-Closing 623
FOB TX
35 x 22 x 35
35 x 22 x 35
*FM Approval not required Created 5/15/2019
• Electrical ground on bottom right hand side to aid in the
elimination of an electrostatic discharge
• Improved security with recessed lockable paddle latch and
3 point locking system
• Bunged air vents on each side of the cabinet allows for
ventilation
• Safety yellow powder coat nish
-
1 FS-SH-1731 Manual 240
1 FS-SH-1731 Self-Closing 244
Manual 170
www.durhammfg.com | P: 800.243.3774 | F: 800.782.5499 | [email protected]
Page 2
FM Approved Flammable Safety Cabinet with Legs
• Sturdy all welded double wall steel construction
• Choice of manual or self-closing doors
• 2” wide louvers support shelves, adjustable on 4”
centers
• 2” Deep leak proof base
• Safely contains hazardous chemicals reducing the risk of
re
• Electrical ground on bottom right hand side to aid in the
• Improved security with recessed lockable paddle latch
and 3 point locking system
• 6” Box style legs allows for lagging to the oor,
moving with forklift, and cleaning under the cabinet
• Bunged air vents on each side of the cabinet allows for
ventilation
• Units come fully assembled and ready for use
• Safety yellow powder coat nish
elimination of an electrostatic discharge
Model Capacity (gl.)
1012ML-50 12 23 x 18 x 41 1 FS-SH-1419 Manual 178
1012SL-50 12 23 x 18 x 42-3/8 1 FS-SH-1419 Self-Closing 186
1016ML-50 16 23 x 18 x 50 1 FS-SH-1419 Manual 196
1016SL-50 16 23 x 18 x 51 3/8 1 FS-SH-1419 Self-Closing 204
1030ML-50 30 43 x 18 x 50 1 FS-SH-1439 Manual 304
1030SL-50 30 43 x 18 x 51-3/8 1 FS-SH-1439 Self-Closing 328
1045ML-50 45 43 x 18 x 71 2 FS-SH-1439 Manual 428
1045SL-50 45 43 x 18 x 72-3/8 2 FS-SH-1439 Self-Closing 442
1060ML-50 60 34 x 34 x 71 2 FS-SH-2930 Manual 542
1060SL-50 60 34 x 34 x 72-3/8 2 FS-SH-2930 Self-Closing 566
1090ML-50 90 43 x 34 x 71 2 FS-SH-2939 Manual 620
1090SL-50 90 43 x 34 x 72-3/8 2 FS-SH-2939 Self-Closing 656
Overall Dim: WxDxH (in.)
Shelves Optional Shelf Part Door Style Ship Wt. (lbs.)
FOB TX
www.durhammfg.com | P: 800.243.3774 | F: 800.782.5499 | [email protected]
Created 5/15/2019
