Page 1
Se ns oWas h Hap py D . 2 C b y Star c k s howe r-toi le t seatSe ns oWas h Hap py D . 2 C b y Star c k s howe r-toi le t seat Di me n s ionDi me n s ion We i ghtWe i ght Ord er numb e rOrd er numb e r
with concealed connections, cIAPMO®ELECTRICAL, remote
control included, power actuated lid and seat, rear-, front and
oscillating wash, individual adjustment of water-, air- and seat
surface temperature as well as nozzle position and jet
strength, self-cleaning wand, 2 individually programmable
user profiles, night light, Quick release: easy seat unit
removal and attachment, on / off-button
ColorsColors
00 White
Vari an tVari ant
14 5/8" x 20 1/4" Inch 14.1 lb 610300001001300
One-Piece toilet US-version toilet, only in combination with
SensoWash, syphonic, 12" rough-in, with dual flush piston
valve, top flush, connecting elements for SensoWash with
concealed connections included, vertical outlet, cUPC listed,
1.32/0.92 gpf
15 3/8" x 28" Inch 126 lb 212151
Toilet wall-mounted Duravit Rimless® rimless, cUPC listed,
washdown model, only in combination with SensoWash,
connecting elements for SensoWash with concealed
connections included, Durafix included
14 3/8" x 24 3/8" Inch 62.2 lb 255059
Two-Piece toilet Duravit Rimless® (without cistern),
connecting elements for SensoWash with concealed
connections included, US-version toilet, rimless, syphonic,
vertical outlet, 12" rough-in, only in combination with
SensoWash, 1.32/0.92 gpf
14 3/8" x 28" Inch 102.1 lb 217451
Su i t ab le p r oduc t sSu i t ab le p r oduc t s
Toilet wall-mounted Duravit Rimless® rimless, cUPC listed,
washdown model, only in combination with SensoWash,
connecting elements for SensoWash with concealed
connections included, Durafix included, 14 3/8" x 24 3/8" Inch
14 3/8" x 24 3/8" Inch 255059
One-Piece toilet US-version toilet, only in combination with
SensoWash, syphonic, 12" rough-in, with dual flush piston
valve, top flush, connecting elements for SensoWash with
concealed connections included, vertical outlet, cUPC listed,
1.32/0.92 gpf, 15 3/8" x 28" Inch
15 3/8" x 28" Inch 212151

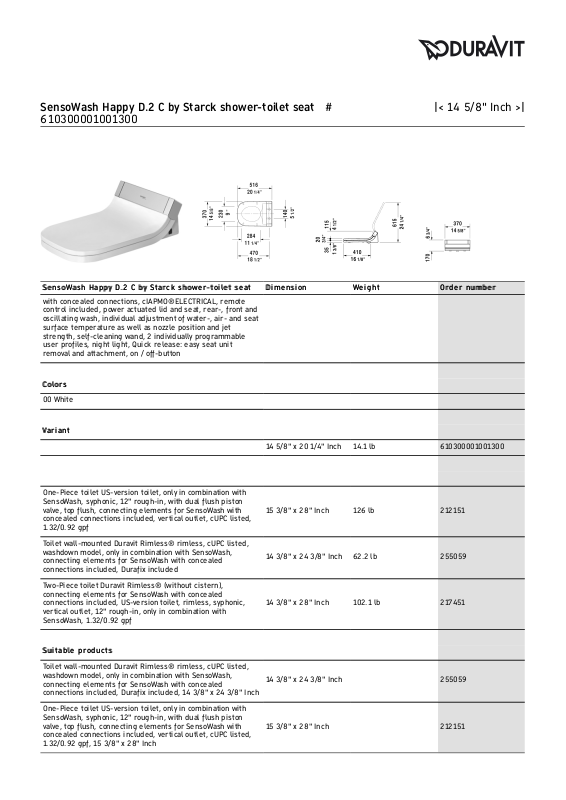

SensoWash Happy D.2 C by Starck shower-toilet seat #
610300001001300
|< 14 5/8" Inch >|
Page 2
Two-Piece toilet Duravit Rimless® (without cistern),
connecting elements for SensoWash with concealed
connections included, US-version toilet, rimless, syphonic,
vertical outlet, 12" rough-in, only in combination with
SensoWash, 1.32/0.92 gpf, 14 3/8" x 28" Inch
14 3/8" x 28" Inch 217451
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
SensoWash Happy D.2 C by Starck shower-toilet seat #
610300001001300
|< 14 5/8" Inch >|
