Was hb as inWas hb as in Di me ns ionDi mensi on We i g h tWe i g h t Ord e r n u mbe rOrd e r n u mbe r
with overflow, with tap platform, 21 5/8" Inch
ColorsColors
00 White
Vari antVari ant
p
21 5/8" x 17 3/8" Inch 34.8 lb 231955..00
p p p
21 5/8" x 17 3/8" Inch 34.8 lb 231955..30
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Pedestal for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 232610, 232680, 232510, 232580, 233813
26.7 lb 085829
Siphon cover for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 232610, 232680, 232510, 232580, 233813
15.7 lb 085830
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

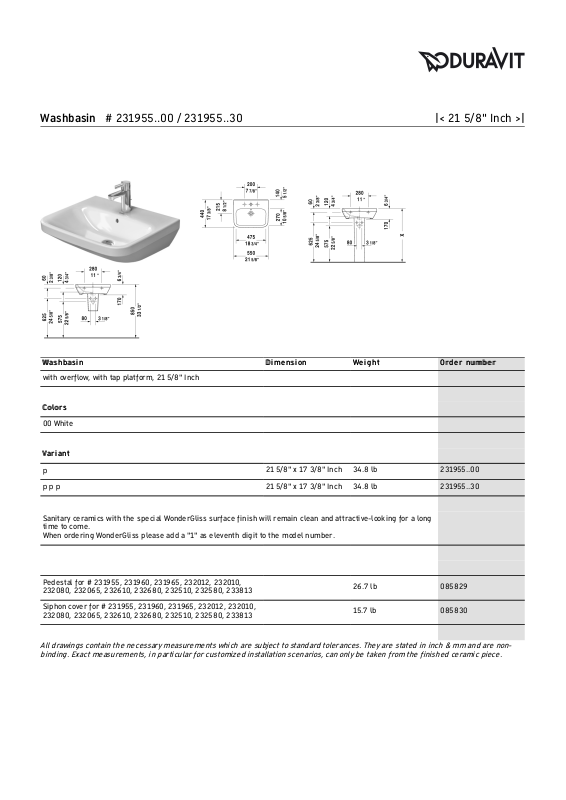

Washbasin # 231955..00 / 231955..30 |< 21 5/8" Inch >|
