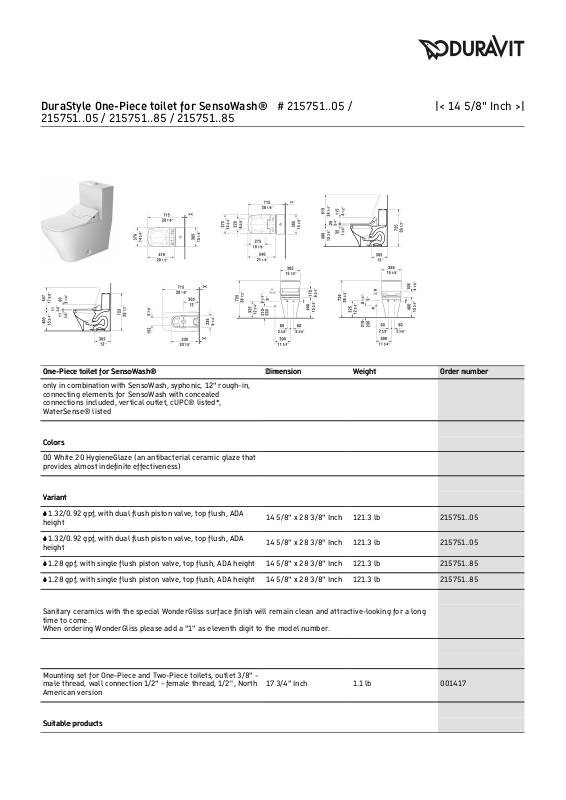

One-Piece toilet for SensoWash®One-Piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
only in combination with SensoWash, syphonic, 12" rough-in,
connecting elements for SensoWash with concealed
connections included, vertical outlet, cUPC® listed*,
WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf, with dual flush piston valve, top flush, ADA
height
14 5/8" x 28 3/8" Inch 121.3 lb 215751..05
© 1.32/0.92 gpf, with dual flush piston valve, top flush, ADA
height
14 5/8" x 28 3/8" Inch 121.3 lb 215751..05
© 1.28 gpf, with single flush piston valve, top flush, ADA height
14 5/8" x 28 3/8" Inch 121.3 lb 215751..85
© 1.28 gpf, with single flush piston valve, top flush, ADA height
14 5/8" x 28 3/8" Inch 121.3 lb 215751..85
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
DuraStyle One-Piece toilet for SensoWash® # 215751..05 /
215751..05 / 215751..85 / 215751..85
|< 14 5/8" Inch >|
Page 2
SensoWash® Starck C shower-toilet seat for DuraStyle* Rear-,
Lady- and Comfortwash, individual adjustment of water-, airand seat surface temperature as well as nozzle position and jet
strength, heated seat, warm air dryer, power actuated lid and
seat, night light, 2 individually programmable user profiles,
remote control included, self-cleaning wand, on / off-button,
with concealed connections, Quick release: easy seat unit
removal and attachment, 14 3/4" x 20 1/2" Inch
14 3/4" x 20 1/2" Inch 610200
SensoWash® Slim shower-toilet seat for DuraStyle* Rear-,
Lady- and Comfortwash, with slow close, night light, remote
control included, locking function via remote control, selfcleaning wand, on / off-button, with concealed connections,
automatic drainage in periods of prolonged disuse, 14 3/4" x 21
1/4" Inch
14 3/4" x 21 1/4" Inch 611200
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle One-Piece toilet for SensoWash® # 215751..05 /
215751..05 / 215751..85 / 215751..85
|< 14 5/8" Inch >|
