Toilet close-coupledToilet close-coupled DimensionDimension WeightWeight Order numberOrder number
(without tank), washdown model, hardware included, cUPC®
listed*, WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf, outlet for vario connector set, for horizontal and
vertical outlet, length adjustable from 2 3/4" - 5 3/4", and vario
connecting bend, vertical outlet from 6 1/4" - 7 1/8", ADA height
14 5/8" x 24 3/4" Inch 66.1 lb 213809..92
© 1.6/0.8 gpf, outlet for vario connector set, for horizontal and
vertical outlet, length adjustable from 2 3/4" - 5 3/4", and vario
connecting bend, vertical outlet from 6 1/4" - 7 1/8", ADA height
14 5/8" x 24 3/4" Inch 66.1 lb 213809..92
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.

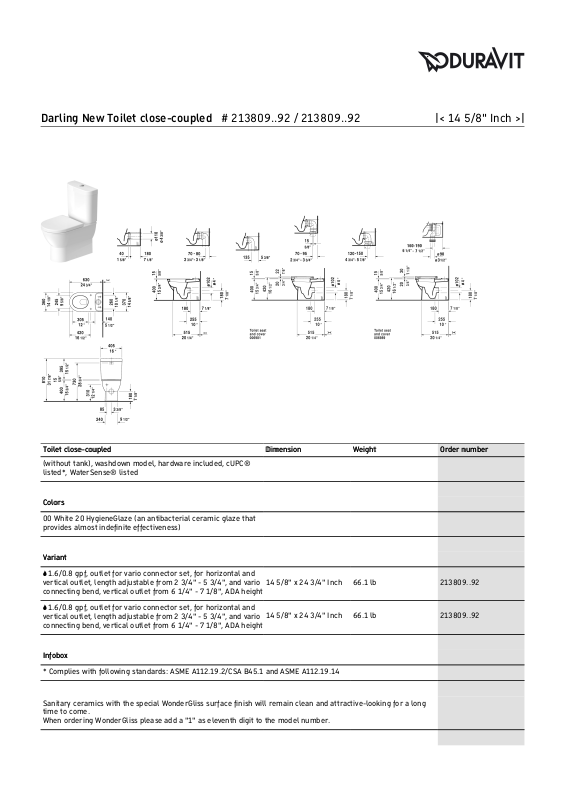

Darling New Toilet close-coupled # 213809..92 / 213809..92 |< 14 5/8" Inch >|
Page 2
Vario connecting bend for vertical outlet 1.5 lb 899025
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
Toilet seat and cover hinges stainless steel, removable, with
slow close,
006989
Tank for bottom left supply, with dual flush mechanism,
Chrome, cUPC® listed*, WaterSense® listed, 16" x 6 1/4" Inch
16" x 6 1/4" Inch 093110
Toilet seat and cover hinges stainless steel, without slow close, 006981
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Darling New Toilet close-coupled # 213809..92 / 213809..92 |< 14 5/8" Inch >|
