Toi le t cl ose-cou p le dToi le t c l ose-cou p l e d Di me n s i onDi me n s i on We i g htWe i g ht Ord e r n u mbe rOrd e r n u mbe r
cUPC listed, washdown model, (without cistern), suitable for
SensoWash Starck, Outlet for Vario connector set, for
horizontal and vertical outlet, length adjustable from 2 3/4" - 7
7/8", and vario connecting bend, vertical outlet from 7 7/8" - 9
1/2", fixings included
ColorsColors
00 White
Vari antVari ant
© 1.6/0.8 gpf
14 3/4" x 28 3/8" Inch 86 lb 2129090092
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Cistern with Dual Flush mechanism, Chrome, concealed left
supply, cUPC listed
14 5/8" x 5 3/4" Inch 24.7 lb 093300
Toilet seat and cover elongated, hinges stainless steel, without
slow close
4.4 lb 006332
Toilet seat and cover elongated, hinges stainless steel, with
slow close, removable
4.4 lb 006339

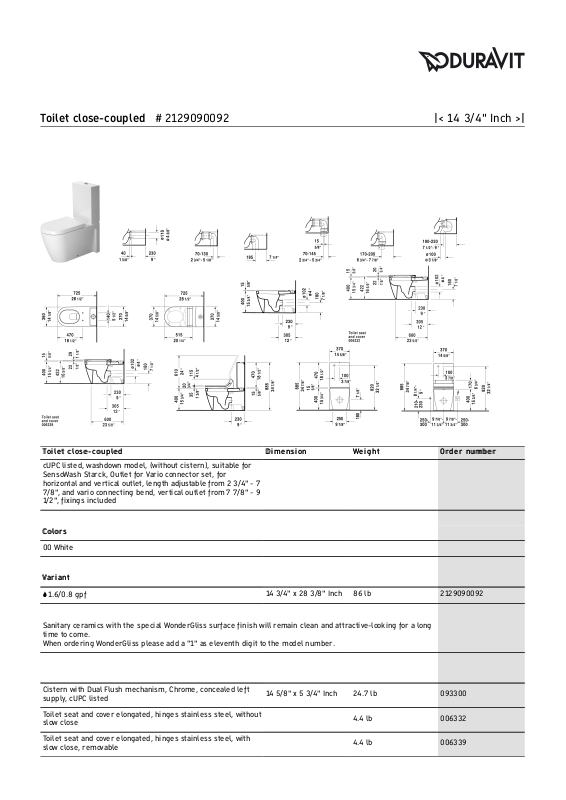

Toilet close-coupled # 2129090092 |< 14 3/4" Inch >|
Page 2
Vario connector set incl. excenter 3.3 lb 001422
Vario connecting bend for vertical outlet 1.5 lb 899025
SensoWash Starck shower-toilet seat remote control included,
cIAPMO®ELECTRICAL, power actuated lid and seat, rear-, front
and oscillating wash, individual adjustment of water-, air- and
seat surface temperature as well as nozzle position and jet
strength, self-cleaning wand, 2 individually programmable
user profiles, night light, Quick release: easy seat unit
removal and attachment, on / off-button
14 5/8" x 20 1/4" Inch 12.6 lb 610000
Su i t able prod u c t sSu i t able prod u c t s
SensoWash Starck shower-toilet seat remote control included,
cIAPMO®ELECTRICAL, power actuated lid and seat, rear-, front
and oscillating wash, individual adjustment of water-, air- and
seat surface temperature as well as nozzle position and jet
strength, self-cleaning wand, 2 individually programmable
user profiles, night light, Quick release: easy seat unit
removal and attachment, on / off-button, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610000
Cistern with Dual Flush mechanism, Chrome, concealed left
supply, cUPC listed, 14 5/8" x 5 3/4" Inch
14 5/8" x 5 3/4" Inch 093300
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
006332
Toilet seat and cover elongated, hinges stainless steel, with
slow close, removable,
006339
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Toilet close-coupled # 2129090092 |< 14 3/4" Inch >|
