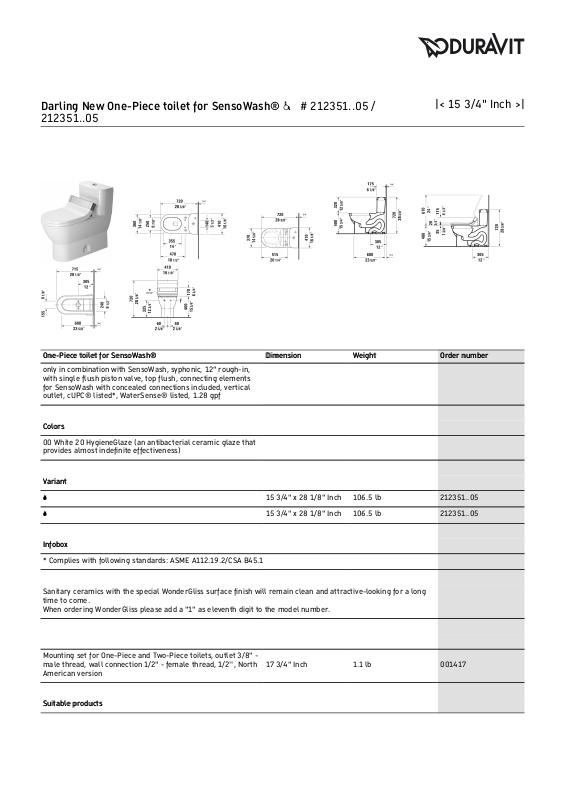

Page 1
One-Piece toilet for SensoWash®One-Piece toilet for SensoWash® DimensionDimension WeightWeight Order numberOrder number
only in combination with SensoWash, syphonic, 12" rough-in,
with single flush piston valve, top flush, connecting elements
for SensoWash with concealed connections included, vertical
outlet, cUPC® listed*, WaterSense® listed, 1.28 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
©
15 3/4" x 28 1/8" Inch 106.5 lb 212351..05
©
15 3/4" x 28 1/8" Inch 106.5 lb 212351..05
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
Darling New One-Piece toilet for SensoWash® Ÿ # 212351..05 /
212351..05
|< 15 3/4" Inch >|
Page 2
SensoWash® Starck C shower-toilet seat for ME by Starck,
Starck 2, Starck 3 and Darling New* Rear-, Lady- and
Comfortwash, individual adjustment of water-, air- and seat
surface temperature as well as nozzle position and jet strength,
heated seat, warm air dryer, power actuated lid and seat, night
light, 2 individually programmable user profiles, remote control
included, self-cleaning wand, on / off-button, with concealed
connections, Quick release: easy seat unit removal and
attachment, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610001
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Darling New One-Piece toilet for SensoWash® Ÿ # 212351..05 /
212351..05
|< 15 3/4" Inch >|
