Siphon coverSiphon cover DimensionDimension WeightWeight Order numberOrder number
for # 070950
ColorsColors
00 White
VariantVariant
7 1/8" x 9 7/8" Inch 12.8 lb 0858320000
InfoboxInfobox
Hardware # 005503 required for installation
Hardware for siphon cover 0.2 lb 005503
Suitable productsSuitable products
Handrinse basin with overflow, with faucet deck, overflow clip
Chrome included, underside fully glazed, hardware included,
wall-mounted, 19 5/8" x 14 1/8" Inch
19 5/8" x 14 1/8" Inch 070950
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

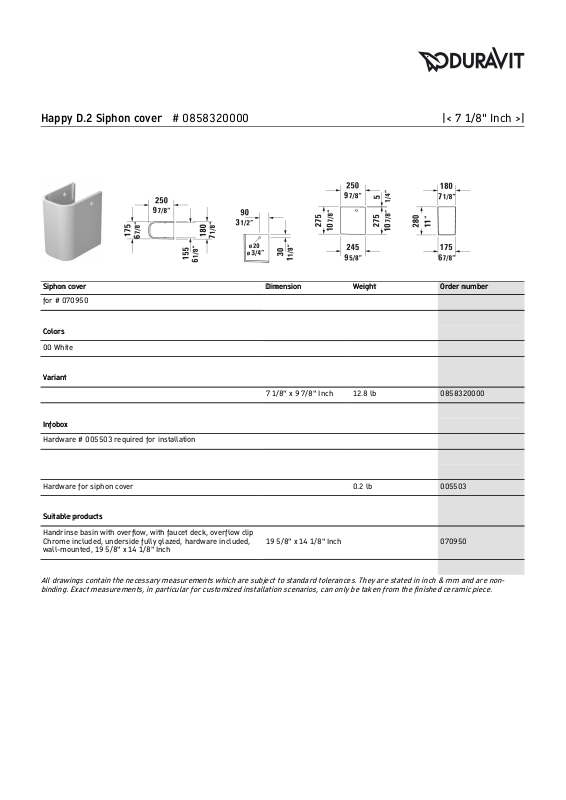

Happy D.2 Siphon cover # 0858320000 |< 7 1/8" Inch >|
