WashbasinWashbasin DimensionDimension WeightWeight Order numberOrder number
without overflow, with faucet deck, underside fully glazed,
hardware included, wall-mounted, cUPC® listed*, 22 5/8" Inch
ColorsColors
00 White
VariantVariant
# + without faucet hole
22 5/8" x 20 1/2" Inch 33.5 lb 0449580000
p faucet hole on right side
22 5/8" x 20 1/2" Inch 33.5 lb 0449580008
p faucet hole on left side
22 5/8" x 20 1/2" Inch 33.5 lb 0449580009
p * faucet hole on left side, soap dispenser right
22 5/8" x 20 1/2" Inch 33.5 lb 0449580023
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, Not available with WonderGliss
Slotted waste for washbasins without overflow 2" Inch 0.7 lb 005024
Suitable productsSuitable products
Soap dispenser for washbasins with hole for soap dispenser, for
washbasin # 044845, 044958, 046240, 045058, 044358,
032050, Ø 1 1/8" Inch
Ø 1 1/8" Inch 009972
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

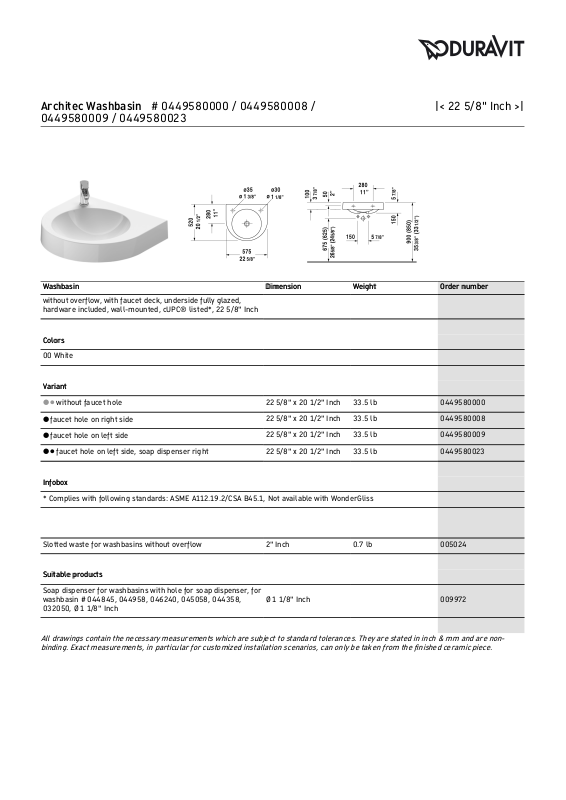

Architec Washbasin # 0449580000 / 0449580008 /
0449580009 / 0449580023
|< 22 5/8" Inch >|
