Toi le t wall-mounte dToi le t w all -mou nte d Di me n s i onDi me n s i on We i g htWe i g ht Ord er nu m b e rOrd er nu m b e r
cUPC listed, washdown model
ColorsColors
00 White 08 Black
Vari antVari ant
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Toilet seat and cover removable, hinges stainless steel, with
slow close
7 lb 006769
Fixing for wall-mounted bidet and wall-mounted toilet Ø 1/2" x 7 1/8" Inch 0.4 lb 006500
Noise reduction gasket for wall-mounted toilet 0.7 lb 005064
Geberit in-wall tank and carrier width 19 3/4", depth 5 1/2"
height (adjustable) 43" - 47"
19 3/4" x 5 1/2" Inch 38 lb 111335
Dual Flush Actuator Sigma 01 White 9 5/8" x 6 1/2" Inch 115770
Su i t ab le p r oductsSu i t ab le p r oducts
Toilet seat and cover removable, hinges stainless steel, with
slow close,
006769
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

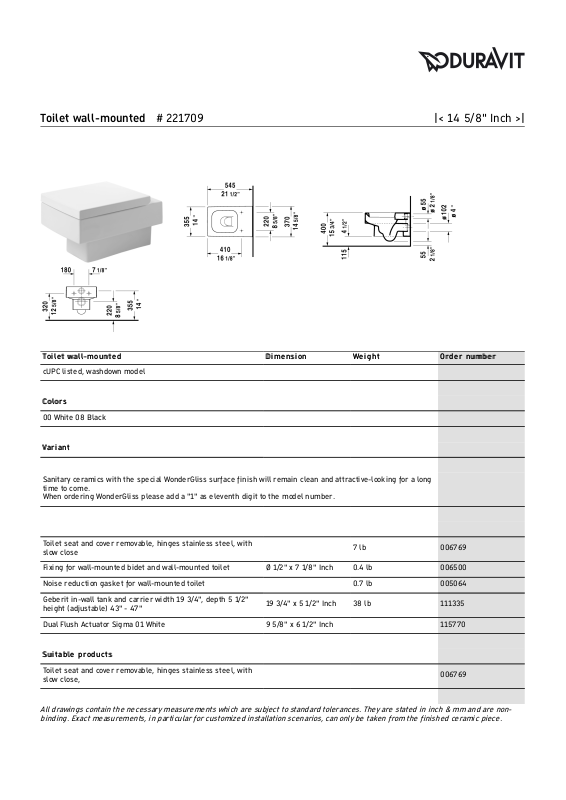

Toilet wall-mounted # 221709 |< 14 5/8" Inch >|
