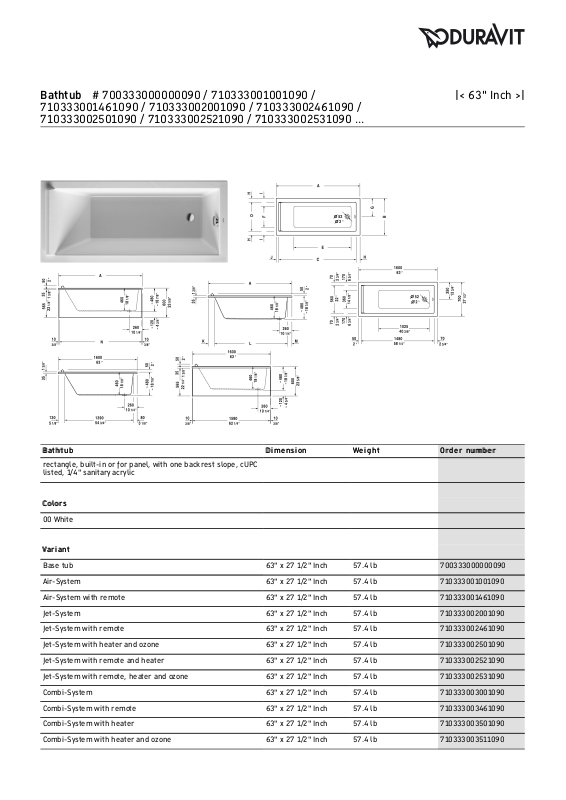

Batht ubBatht ub Di mens i onDi mens i on We i ghtWe i ght Ord e r n umb e rOrd e r n umb e r
rectangle, built-in or for panel, with one backrest slope, cUPC
listed, 1/4" sanitary acrylic
Color sColor s
00 White
Vari an tVari an t
Base tub 63" x 27 1/2" Inch 57.4 lb 700333000000090
Air-System 63" x 27 1/2" Inch 57.4 lb 710333001001090
Air-System with remote 63" x 27 1/2" Inch 57.4 lb 710333001461090
Jet-System 63" x 27 1/2" Inch 57.4 lb 710333002001090
Jet-System with remote 63" x 27 1/2" Inch 57.4 lb 710333002461090
Jet-System with heater and ozone 63" x 27 1/2" Inch 57.4 lb 710333002501090
Jet-System with remote and heater 63" x 27 1/2" Inch 57.4 lb 710333002521090
Jet-System with remote, heater and ozone 63" x 27 1/2" Inch 57.4 lb 710333002531090
Combi-System 63" x 27 1/2" Inch 57.4 lb 710333003001090
Combi-System with remote 63" x 27 1/2" Inch 57.4 lb 710333003461090
Combi-System with heater 63" x 27 1/2" Inch 57.4 lb 710333003501090
Combi-System with heater and ozone 63" x 27 1/2" Inch 57.4 lb 710333003511090
Bathtub # 700333000000090 / 710333001001090 /
710333001461090 / 710333002001090 / 710333002461090 /
710333002501090 / 710333002521090 / 710333002531090 ...
|< 63" Inch >|
Page 2
Combi-System with remote and heater 63" x 27 1/2" Inch 57.4 lb 710333003521090
Combi-System with remote, heater and ozone 63" x 27 1/2" Inch 57.4 lb 710333003531090
Combi-System with light 63" x 27 1/2" Inch 57.4 lb 710333004001090
Combi-System with light and remote 63" x 27 1/2" Inch 57.4 lb 710333004461090
Combi-System with light and heater 63" x 27 1/2" Inch 57.4 lb 710333004501090
Combi-System with light, heater and ozone 63" x 27 1/2" Inch 57.4 lb 710333004511090
Combi-System with light, remote and heater 63" x 27 1/2" Inch 57.4 lb 710333004521090
Combi-System with light, remote, heater and ozone 63" x 27 1/2" Inch 57.4 lb 710333004531090
Ac c essory for b at h- and wh i rltubAc c essory for b at h- and wh i rltub
Headrest White 790010
Cable-driven waste and overflow 790220
Tile flange 790112
Support frame (included) 790108
Bathtub anchors for mounting and support of bathtubs and
shower trays, 3 pieces
790103
Stereo transducers (speakers) for bathtubs and whirltubs 791818
Su i table p an e lsSu i table p an e ls
Panel for corner left, for # 7X0333 (63" x 27 1/2") 27 1/8" x 62 5/8" Inch ST8785
Panel for corner right, for # 7X0333 (63" x 27 1/2") 27 1/8" x 62 5/8" Inch ST8780
Panel for back-to-wall, for # 7X0333 (63" x 27 1/2") 27 1/8" x 62 1/4" Inch ST8775
Panel for niche (alcove), for # 7X0333 (63" x 27 1/2") 62 5/8" Inch ST8937
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Bathtub # 700333000000090 / 710333001001090 /
710333001461090 / 710333002001090 / 710333002461090 /
710333002501090 / 710333002521090 / 710333002531090 ...
|< 63" Inch >|
