Batht ubBatht ub Di mens i onDi mens i on We i ghtWe i ght Ord e r n umb e rOrd e r n umb e r
rectangle, built-in or for panel, with one backrest slope, cUPC
listed, 1/4" sanitary acrylic
Color sColor s
00 White
Vari an tVari an t
Base tub 59" x 29 1/2" Inch 54 lb 700332000000090
Air-System 59" x 29 1/2" Inch 54 lb 710332001001090
Air-System with remote 59" x 29 1/2" Inch 54 lb 710332001461090
Jet-System 59" x 29 1/2" Inch 54 lb 710332002001090
Jet-System with remote 59" x 29 1/2" Inch 54 lb 710332002461090
Jet-System with heater 59" x 29 1/2" Inch 54 lb 710332002501090
Jet-System with heater and ozone 59" x 29 1/2" Inch 54 lb 710332002511090
Jet-System with remote and heater 59" x 29 1/2" Inch 54 lb 710332002521090
Jet-System with remote, heater and ozone 59" x 29 1/2" Inch 54 lb 710332002531090
Combi-System 59" x 29 1/2" Inch 54 lb 710332003001090
Combi-System with remote 59" x 29 1/2" Inch 54 lb 710332003461090
Combi-System with heater 59" x 29 1/2" Inch 54 lb 710332003501090
Combi-System with heater and ozone 59" x 29 1/2" Inch 54 lb 710332003511090
Combi-System with remote and heater 59" x 29 1/2" Inch 54 lb 710332003521090
Combi-System with remote, heater and ozone 59" x 29 1/2" Inch 54 lb 710332003531090
Combi-System with light 59" x 29 1/2" Inch 54 lb 710332004001090
Combi-System with light and remote 59" x 29 1/2" Inch 54 lb 710332004461090
Combi-System with light and heater 59" x 29 1/2" Inch 54 lb 710332004501090

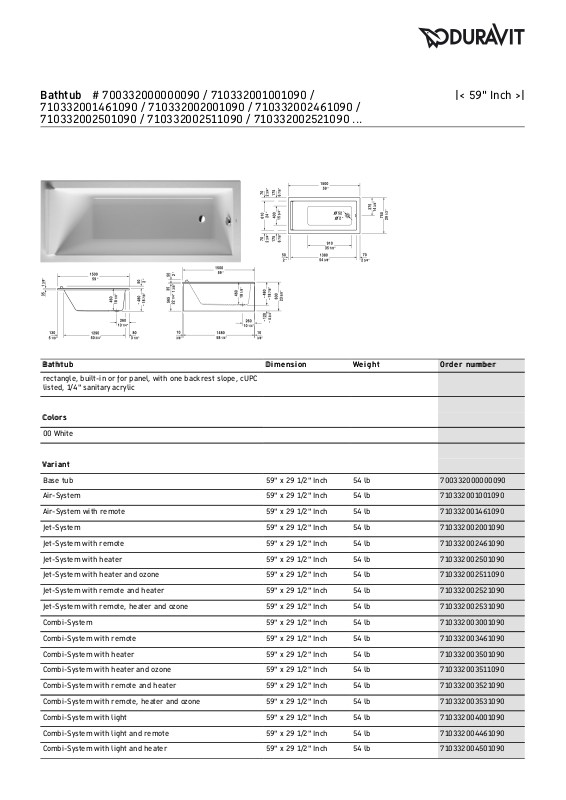

Bathtub # 700332000000090 / 710332001001090 /
710332001461090 / 710332002001090 / 710332002461090 /
710332002501090 / 710332002511090 / 710332002521090 ...
|< 59" Inch >|
Page 2
Combi-System with light, heater and ozone 59" x 29 1/2" Inch 54 lb 710332004511090
Combi-System with light, remote and heater 59" x 29 1/2" Inch 54 lb 710332004521090
Combi-System with light, remote, heater and ozone 59" x 29 1/2" Inch 54 lb 710332004531090
Ac c essory for b at h- and wh i rltubAc c essory for b at h- and wh i rltub
Headrest White 790010
Cable-driven waste and overflow 790220
Tile flange 790112
Support frame (included) 790108
Bathtub anchors for mounting and support of bathtubs and
shower trays, 3 pieces
790103
Stereo transducers (speakers) for bathtubs and whirltubs 791818
Su i table p an e lsSu i table p an e ls
Panel for corner left, for # 7X0332 (59" x 29 1/2") 29 1/8" x 58 5/8" Inch ST8909
Panel for back-to-wall, for # 7X0332 (59" x 29 1/2") 29 1/8" x 58 1/4" Inch ST8923
Panel for niche (alcove), for # 7X0331 (59" x 27 1/2"), for #
7X0332 (59" x 29 1/2")
58 5/8" Inch ST8936
Panel for corner right, for # 7X0332 (59" x 29 1/2") 29 1/8" x 58 5/8" Inch ST8916
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Bathtub # 700332000000090 / 710332001001090 /
710332001461090 / 710332002001090 / 710332002461090 /
710332002501090 / 710332002511090 / 710332002521090 ...
|< 59" Inch >|
