Page 1
BathtubBathtub DimensionDimension WeightWeight Order numberOrder number
rectangle, drop-in or for panel, with one backrest slope, cUPC®
listed*, Sanitary acrylic
ColorsColors
00 White
VariantVariant
Base tub 59" x 27 1/2" Inch 52.9 lb 700331000000090
InfoboxInfobox
* Complies with the following standards: CSA B45.5/IAPMO Z124
Suitable panelsSuitable panels
Panel for back-to-wall, for # 700331 (59" x 27 1/2") 29 1/8" x 58 1/4" Inch ST8922
Panel for niche (alcove), for # 700331 (59" x 27 1/2"), for #
700332 (59" x 29 1/2")
58 5/8" Inch ST8936
Panel for corner right, for # 700331 (59" x 27 1/2") 27 1/8" x 58 5/8" Inch ST8915
Panel for corner left, for # 700331 (59" x 27 1/2") 27 1/8" x 58 5/8" Inch ST8908
Suitable productsSuitable products

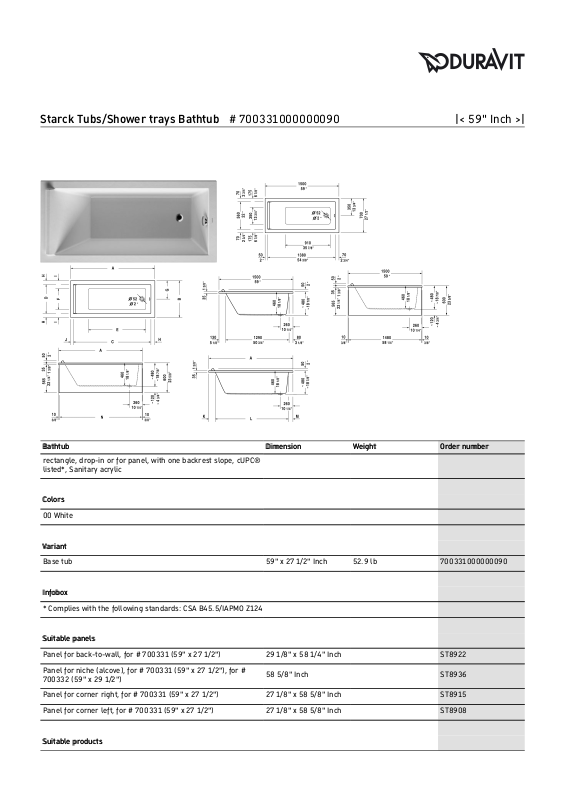

Starck Tubs/Shower trays Bathtub # 700331000000090 |< 59" Inch >|
Page 2
Tile flange , 790112
Cable-driven waste and overflow , 790220
Bathtub anchors for mounting and support of bathtubs and
shower trays, 3 pieces,
790103
Acrylic panel front, for Starck Bathtubs, 59", 701065
Acrylic panel sidewise, for Starck Bathtubs, 27 1/2", 701071
Stereo transducers (speakers) for bathtubs , 791818
Support frame (included), for D-Code bathtubs, 790133
Headrest for Starck, material: polyurethane, White, 790010
Waste and overflow brass, Chrome trim, 791255
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonÂbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck Tubs/Shower trays Bathtub # 700331000000090 |< 59" Inch >|
