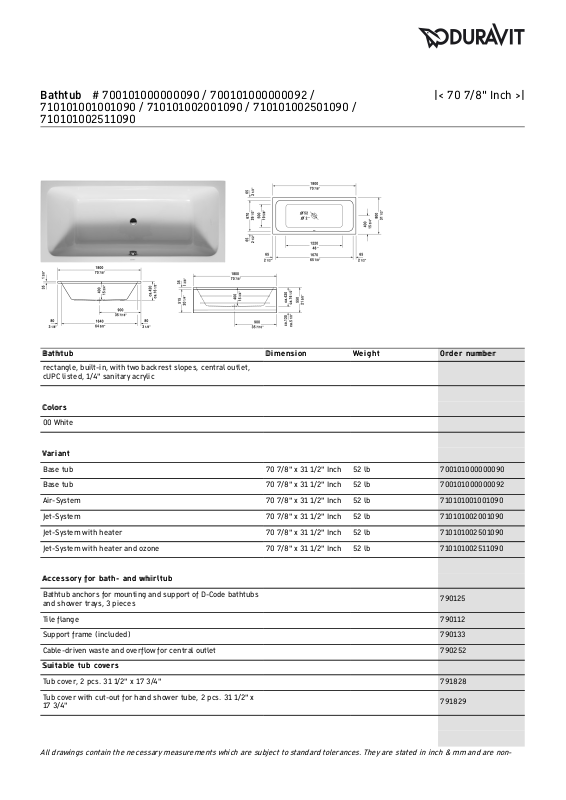

Batht ubBatht ub Di mens i onDi mens i on We i ghtWe i ght Ord e r n umb e rOrd e r n umb e r
rectangle, built-in, with two backrest slopes, central outlet,
cUPC listed, 1/4" sanitary acrylic
Color sColor s
00 White
Vari an tVari an t
Base tub 70 7/8" x 31 1/2" Inch 52 lb 700101000000090
Base tub 70 7/8" x 31 1/2" Inch 52 lb 700101000000092
Air-System 70 7/8" x 31 1/2" Inch 52 lb 710101001001090
Jet-System 70 7/8" x 31 1/2" Inch 52 lb 710101002001090
Jet-System with heater 70 7/8" x 31 1/2" Inch 52 lb 710101002501090
Jet-System with heater and ozone 70 7/8" x 31 1/2" Inch 52 lb 710101002511090
Ac c essory for b at h- and wh i rltubAc c essory for b at h- and wh i rltub
Bathtub anchors for mounting and support of D-Code bathtubs
and shower trays, 3 pieces
790125
Tile flange 790112
Support frame (included) 790133
Cable-driven waste and overflow for central outlet 790252
Su i table tub c oversSu i table tub c overs
Tub cover, 2 pcs. 31 1/2" x 17 3/4" 791828
Tub cover with cut-out for hand shower tube, 2 pcs. 31 1/2" x
17 3/4"
791829
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non-
Bathtub # 700101000000090 / 700101000000092 /
710101001001090 / 710101002001090 / 710101002501090 /
710101002511090
|< 70 7/8" Inch >|
Page 2
binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Bathtub # 700101000000090 / 700101000000092 /
710101001001090 / 710101002001090 / 710101002501090 /
710101002511090
|< 70 7/8" Inch >|
