Batht ubBatht ub Di mens i onDi mens i on We i ghtWe i ght Ord e r n umb e rOrd e r n umb e r
rectangle, built-in, with one backrest slope, outlet in foot area,
cUPC listed, 1/4" sanitary acrylic
Color sColor s
00 White
Vari an tVari an t
Base tub 66 7/8" x 29 1/2" Inch 44 lb 700100000000090
Base tub 66 7/8" x 29 1/2" Inch 44 lb 700100000000092
Air-System 66 7/8" x 29 1/2" Inch 44 lb 710100001001090
Jet-System 66 7/8" x 29 1/2" Inch 44 lb 710100002001090
Jet-System with heater 66 7/8" x 29 1/2" Inch 44 lb 710100002501090
Jet-System with heater and ozone 66 7/8" x 29 1/2" Inch 44 lb 710100002511090
Ac c essory for b at h- and wh i rltubAc c essory for b at h- and wh i rltub
Bathtub anchors for mounting and support of D-Code bathtubs
and shower trays, 3 pieces
790125
Tile flange 790112
Support frame (included) 790133
Cable-driven waste and overflow 790220
Su i table tub c oversSu i table tub c overs
Tub cover, 2 pcs. 29 1/2" x 16 3/4" 791824
Tub cover with cut-out for hand shower tube, 2 pcs. 29 1/2" x
16 3/4"
791825
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non-

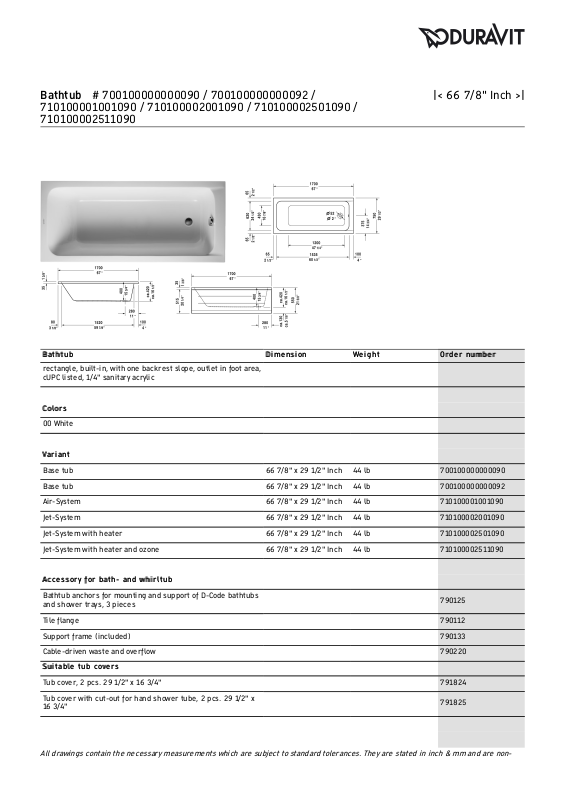

Bathtub # 700100000000090 / 700100000000092 /
710100001001090 / 710100002001090 / 710100002501090 /
710100002511090
|< 66 7/8" Inch >|
Page 2
binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Bathtub # 700100000000090 / 700100000000092 /
710100001001090 / 710100002001090 / 710100002501090 /
710100002511090
|< 66 7/8" Inch >|
