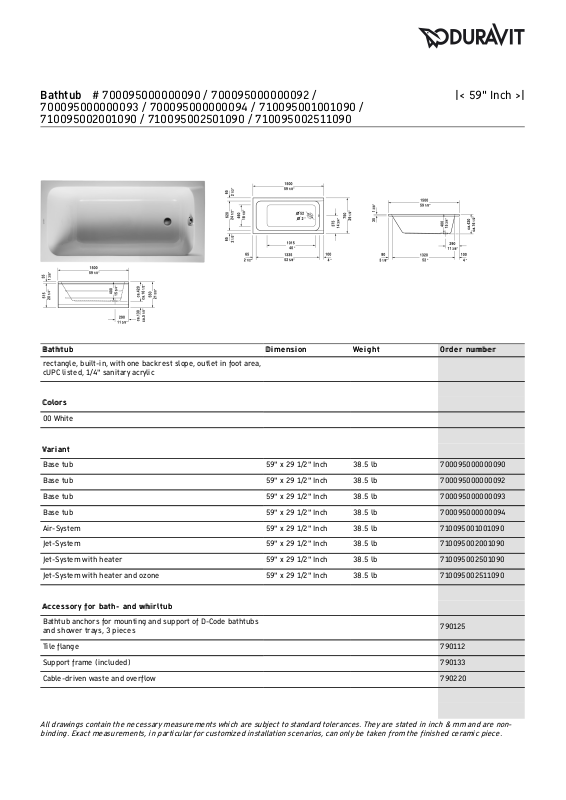

Batht ubBatht ub Di mens i onDi mens i on We i ghtWe i ght Ord e r n umb e rOrd e r n umb e r
rectangle, built-in, with one backrest slope, outlet in foot area,
cUPC listed, 1/4" sanitary acrylic
Color sColor s
00 White
Vari an tVari an t
Base tub 59" x 29 1/2" Inch 38.5 lb 700095000000090
Base tub 59" x 29 1/2" Inch 38.5 lb 700095000000092
Base tub 59" x 29 1/2" Inch 38.5 lb 700095000000093
Base tub 59" x 29 1/2" Inch 38.5 lb 700095000000094
Air-System 59" x 29 1/2" Inch 38.5 lb 710095001001090
Jet-System 59" x 29 1/2" Inch 38.5 lb 710095002001090
Jet-System with heater 59" x 29 1/2" Inch 38.5 lb 710095002501090
Jet-System with heater and ozone 59" x 29 1/2" Inch 38.5 lb 710095002511090
Ac c essory for b at h- and wh i rltubAc c essory for b at h- and wh i rltub
Bathtub anchors for mounting and support of D-Code bathtubs
and shower trays, 3 pieces
790125
Tile flange 790112
Support frame (included) 790133
Cable-driven waste and overflow 790220
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Bathtub # 700095000000090 / 700095000000092 /
700095000000093 / 700095000000094 / 710095001001090 /
710095002001090 / 710095002501090 / 710095002511090
|< 59" Inch >|
Page 2

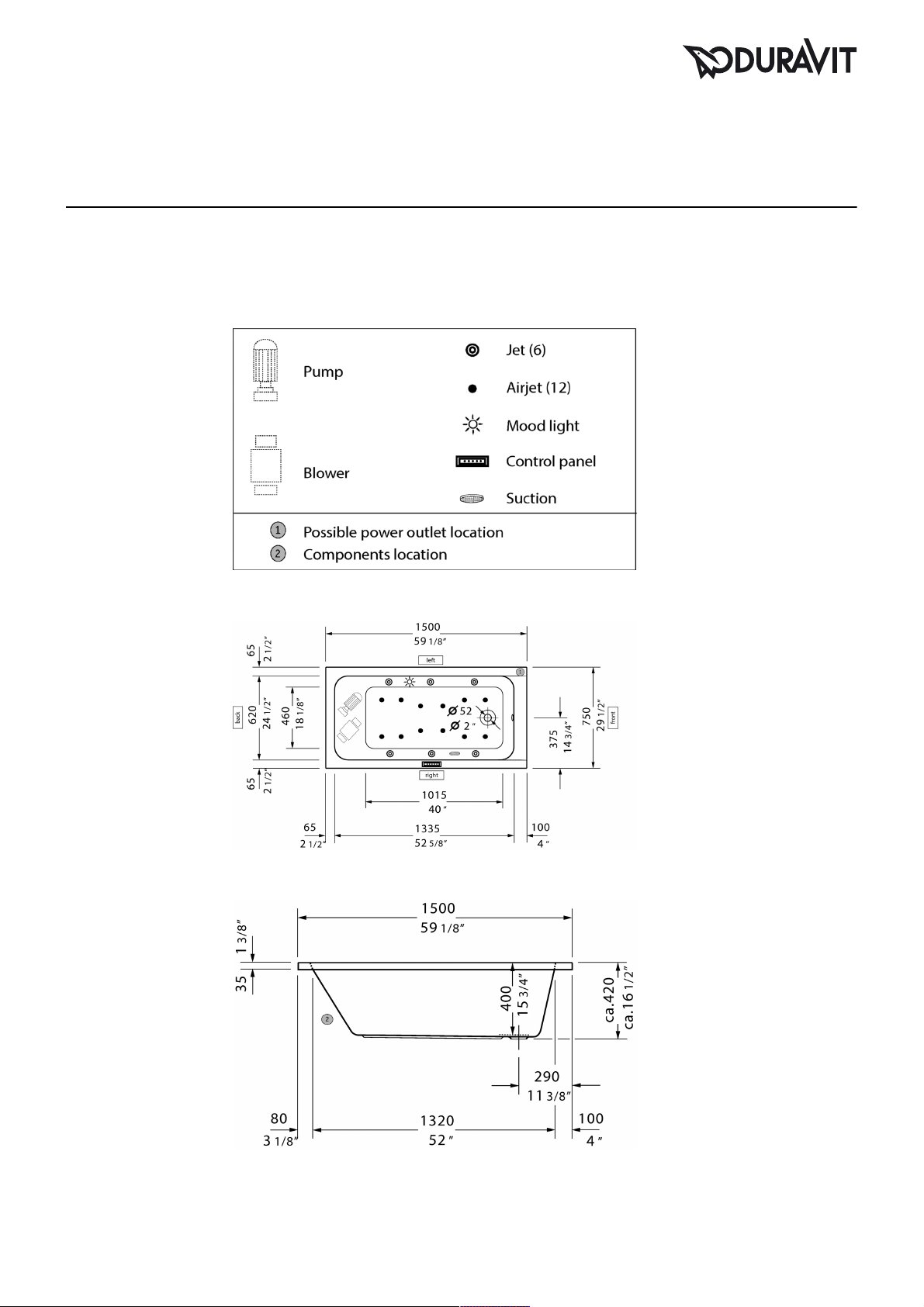

Bathtub # 700095000000090 / 700095000000092 /
700095000000093 / 700095000000094 / 710095001001090 /
710095002001090 / 710095002501090 / 710095002511090
|< 59" Inch >|
Page 3
Additional information
Cons tru c tionCons tru c tion
3/8” (5mm) cast acrylic shell, thick fiber glass reinforcement, 1 year limited warranty
Electr ical s p e cific ati ons :Electr ical s p e cific ati ons :
Required electrical service: 110 Volts
Air-Systems / Jet-Systems: 1 - 20 amp GFCI protected
Combi-Systems / Combi-Systems with light: 2 - 20 amp GFCI protected
Bathtub # 700095000000090 / 700095000000092 /
700095000000093 / 700095000000094 / 710095001001090 /
710095002001090 / 710095002501090 / 710095002511090
|< 59" Inch >|
