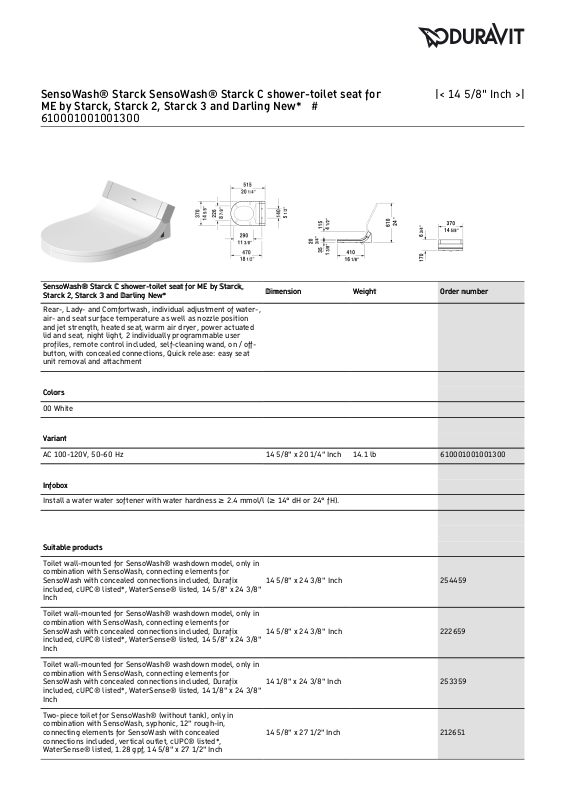

Duravit DRV1832 Specifications

SensoWash® Starck C shower-toilet seat for ME by Starck,SensoWash® Starck C shower-toilet seat for ME by Starck,
Starck 2, Starck 3 and Darling New*Starck 2, Starck 3 and Darling New*

DimensionDimension WeightWeight Order numberOrder number

Rear-, Lady- and Comfortwash, individual adjustment of water-,
air- and seat surface temperature as well as nozzle position
and jet strength, heated seat, warm air dryer, power actuated
lid and seat, night light, 2 individually programmable user
profiles, remote control included, self-cleaning wand, on / off­button, with concealed connections, Quick release: easy seat
unit removal and attachment

ColorsColors

00 White

VariantVariant

AC 100-120V, 50-60 Hz 14 5/8" x 20 1/4" Inch 14.1 lb 610001001001300

InfoboxInfobox

Install a water water softener with water hardness ≥ 2.4 mmol/l (≥ 14° dH or 24° fH).

Suitable productsSuitable products

Toilet wall-mounted for SensoWash® washdown model, only in
combination with SensoWash, connecting elements for
SensoWash with concealed connections included, Durafix
included, cUPC® listed*, WaterSense® listed, 14 5/8" x 24 3/8"
Inch

14 5/8" x 24 3/8" Inch 254459

Toilet wall-mounted for SensoWash® washdown model, only in
combination with SensoWash, connecting elements for
SensoWash with concealed connections included, Durafix
included, cUPC® listed*, WaterSense® listed, 14 5/8" x 24 3/8"
Inch

14 5/8" x 24 3/8" Inch 222659

Toilet wall-mounted for SensoWash® washdown model, only in
combination with SensoWash, connecting elements for
SensoWash with concealed connections included, Durafix
included, cUPC® listed*, WaterSense® listed, 14 1/8" x 24 3/8"
Inch

14 1/8" x 24 3/8" Inch 253359

Two-piece toilet for SensoWash® (without tank), only in
combination with SensoWash, syphonic, 12" rough-in,
connecting elements for SensoWash with concealed
connections included, vertical outlet, cUPC® listed*,
WaterSense® listed, 1.28 gpf, 14 5/8" x 27 1/2" Inch

14 5/8" x 27 1/2" Inch 212651

SensoWash® Starck SensoWash® Starck C shower-toilet seat for
ME by Starck, Starck 2, Starck 3 and Darling New* #

610001001001300

|< 14 5/8" Inch >|

One-Piece toilet for SensoWash® only in combination with
SensoWash, syphonic, 12" rough-in, with single flush piston
valve, top flush, connecting elements for SensoWash with
concealed connections included, vertical outlet, cUPC® listed*,
WaterSense® listed, 1.28 gpf, 15 3/4" x 28 1/8" Inch

15 3/4" x 28 1/8" Inch 212351

One-Piece toilet for SensoWash® only in combination with
SensoWash, syphonic, 12" rough-in, with single flush
mechanism, with side lever, 3" flapper valve, connecting
elements for SensoWash with concealed connections included,
vertical outlet, cUPC® listed*, WaterSense® listed, 1.28 gpf, 14
5/8" x 28 1/8" Inch

14 5/8" x 28 1/8" Inch 212051

One-Piece toilet Duravit Rimless for SensoWash® rimless,
connecting elements for SensoWash with concealed
connections included, syphonic, 12" rough-in, only in
combination with SensoWash, vertical outlet, cUPC® listed*,
WaterSense® listed, 14 1/8" x 28 3/4" Inch

14 1/8" x 28 3/4" Inch 217351

Toilet kit One-Piece toilet for SensoWash® & SensoWash®
Starck C shower-toilet seat, WaterSense® listed, 15 3/4" x 28
1/8" Inch

15 3/4" x 28 1/8" Inch D21019

Toilet kit One-Piece toilet for SensoWash® & SensoWash®
Starck C shower-toilet seat, WaterSense® listed, 14 5/8" x 28
1/8" Inch

14 5/8" x 28 1/8" Inch D19099

Toilet kit One-Piece toilet for SensoWash® & SensoWash®
Starck C shower-toilet seat, WaterSense® listed, 14 5/8" x 28
3/4" Inch

14 5/8" x 28 3/4" Inch D42024

Toilet kit One-Piece toilet for SensoWash® & SensoWash®
Starck C shower-toilet seat, WaterSense® listed, 14 5/8" x 28
3/4" Inch

14 5/8" x 28 3/4" Inch D42027

All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non­binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

SensoWash® Starck SensoWash® Starck C shower-toilet seat for
ME by Starck, Starck 2, Starck 3 and Darling New* #

610001001001300

|< 14 5/8" Inch >|
