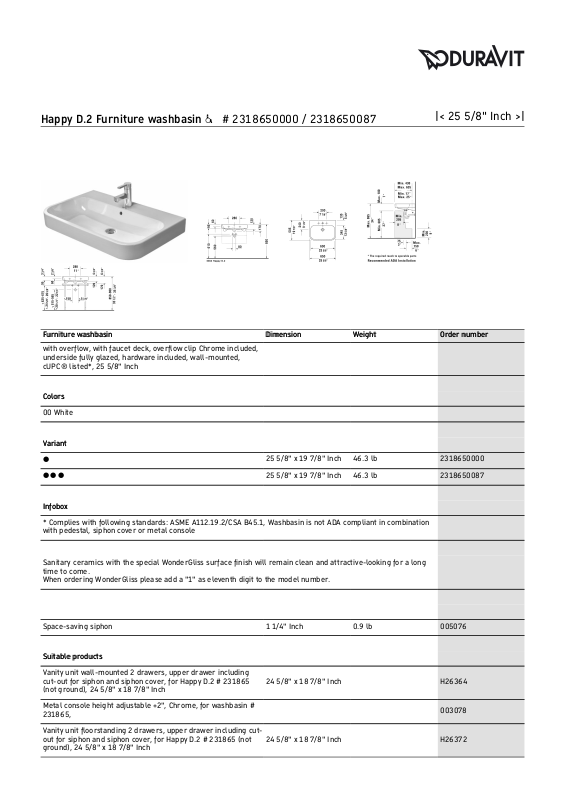

Page 1
Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, overflow clip Chrome included,
underside fully glazed, hardware included, wall-mounted,
cUPC® listed*, 25 5/8" Inch
ColorsColors
00 White
VariantVariant
p
25 5/8" x 19 7/8" Inch 46.3 lb 2318650000
p p p
25 5/8" x 19 7/8" Inch 46.3 lb 2318650087
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, Washbasin is not ADA compliant in combination
with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Suitable productsSuitable products
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Happy D.2 # 231865
(not ground), 24 5/8" x 18 7/8" Inch
24 5/8" x 18 7/8" Inch H26364
Metal console height adjustable +2", Chrome, for washbasin #
231865,
003078
Vanity unit floorstanding 2 drawers, upper drawer including cutout for siphon and siphon cover, for Happy D.2 # 231865 (not
ground), 24 5/8" x 18 7/8" Inch
24 5/8" x 18 7/8" Inch H26372
Happy D.2 Furniture washbasin Ÿ # 2318650000 / 2318650087
|< 25 5/8" Inch >|
Page 2
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Happy D.2 Furniture washbasin Ÿ # 2318650000 / 2318650087
|< 25 5/8" Inch >|
