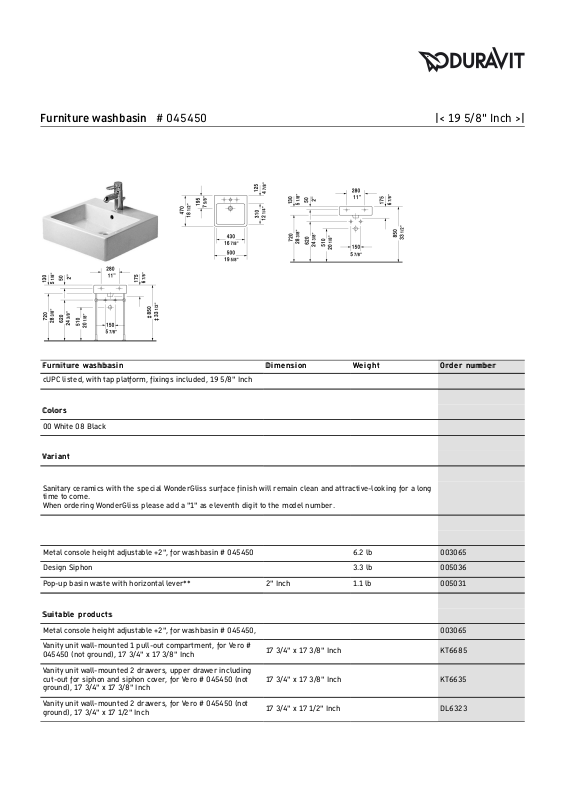

Fu rn itu re washb as inFu rn itu re washb as in Di men sionDi men sion We ightWe ight Order nu mb e rOrder nu mb e r
cUPC listed, with tap platform, fixings included, 19 5/8" Inch
Color sColor s
00 White 08 Black
VariantVariant
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Metal console height adjustable +2", for washbasin # 045450 6.2 lb 003065
Design Siphon 3.3 lb 005036
Pop-up basin waste with horizontal lever** 2" Inch 1.1 lb 005031
Su itabl e p roduc tsSu itabl e p roduc ts
Metal console height adjustable +2", for washbasin # 045450, 003065
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
045450 (not ground), 17 3/4" x 17 3/8" Inch
17 3/4" x 17 3/8" Inch KT6685
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045450 (not
ground), 17 3/4" x 17 3/8" Inch
17 3/4" x 17 3/8" Inch KT6635
Vanity unit wall-mounted 2 drawers, for Vero # 045450 (not
ground), 17 3/4" x 17 1/2" Inch
17 3/4" x 17 1/2" Inch DL6323
Furniture washbasin # 045450 |< 19 5/8" Inch >|
Page 2
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), without compartment, for Vero # 045450 (not
ground), 17 3/4" x 17 1/2" Inch
17 3/4" x 17 1/2" Inch XL6043
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045450 (not
ground), 17 3/4" x 17 1/2" Inch
17 3/4" x 17 1/2" Inch XL6343
Vanity unit wall-mounted 1 opened compartment including
towel rail, for Vero # 045450 (not ground), 17 3/4" x 16 7/8"
Inch
17 3/4" x 16 7/8" Inch VE6003
Vanity unit wall-mounted 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover,
for Vero # 045450 (not ground), 17 3/4" x 16 7/8" Inch
17 3/4" x 16 7/8" Inch VE6103
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045450 (not
ground), 17 3/4" x 16 7/8" Inch
17 3/4" x 16 7/8" Inch VE6203
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Furniture washbasin # 045450 |< 19 5/8" Inch >|
