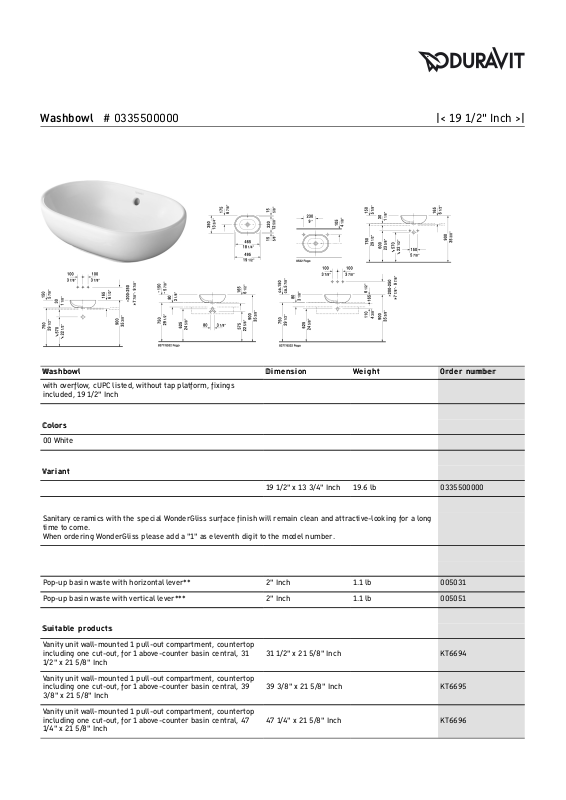

Duravit DRV1794 Specifications

Was hb owlWas hb owl Di me ns ionDi m e n s i on We i g h tWe i g h t Ord e r n u mbe rOrd e r n u mbe r

with overflow, cUPC listed, without tap platform, fixings
included, 19 1/2" Inch

ColorsColors

00 White

Vari antVari ant

19 1/2" x 13 3/4" Inch 19.6 lb 0335500000

Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.

Pop-up basin waste with horizontal lever** 2" Inch 1.1 lb 005031

Pop-up basin waste with vertical lever*** 2" Inch 1.1 lb 005051

Su i t able prod uc tsSu i t able prod uc ts

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 31
1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch KT6694

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 39
3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch KT6695

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin central, 47
1/4" x 21 5/8" Inch

47 1/4" x 21 5/8" Inch KT6696

Washbowl # 0335500000 |< 19 1/2" Inch >|

Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 31 1/2" x 21 5/8"
Inch

31 1/2" x 21 5/8" Inch KT6654

Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 39 3/8" x 21 5/8"
Inch

39 3/8" x 21 5/8" Inch KT6655

Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin central, 47 1/4" x 21 5/8"
Inch

47 1/4" x 21 5/8" Inch KT6656

Vanity unit wall-mounted 4 drawers, 1 countertop with one cut­out or two cut-outs, drawer beneath basin including cut-out
for siphon and siphon cover, for 1 or 2 above-counter basins,
55 1/8" x 21 5/8" Inch

55 1/8" x 21 5/8" Inch KT6657 B/L/R

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, for console, for PuraVida #
037070, # 036970, 31 1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch PV6769

Vanity unit wall-mounted 1 pull-out compartment, 1 countertop
including one central cut-out, 32 7/8" x 22 1/4" Inch

32 7/8" x 22 1/4" Inch S19526

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, 48 5/8" x 22 1/4" Inch

48 5/8" x 22 1/4" Inch S19528 L/M/R

Vanity unit wall-mounted 2 pull-out compartments, 1
countertop with one cut-out or two cut-outs, 56 1/2" x 22 1/4"
Inch

56 1/2" x 22 1/4" Inch S19529 B/L/R

Console including drawer for vanity basin countertop including
one cut-out, 1 drawer beneath console, 1 cover beneath
console, 3 console supports, 59" x 22 1/4" Inch

59" x 22 1/4" Inch DL6891 L/R

Console including drawer for vanity basin countertop including
one cut-out, 1 drawer beneath console, 1 cover beneath
console, 3 console supports, 70 7/8" x 22 1/4" Inch

70 7/8" x 22 1/4" Inch DL6892 L/R

Console including drawer for washbowls 1 countertop
including one central cut-out, 1 drawer beneath console, 2
console supports, 23 5/8" x 22 1/4" Inch

23 5/8" x 22 1/4" Inch DL6787

Console including drawer for washbowls 1 countertop
including one central cut-out, 1 drawer beneath console, 2
console supports, 31 1/2" x 22 1/4" Inch

31 1/2" x 22 1/4" Inch DL6788

Console including drawer for washbowls 1 countertop
including one central cut-out, 1 drawer beneath console, 2
console supports, 39 3/8" x 22 1/4" Inch

39 3/8" x 22 1/4" Inch DL6789

Console including drawer for washbowls 1 countertop
including one central cut-out, 1 drawer beneath console, 3
console supports, 47 1/4" x 22 1/4" Inch

47 1/4" x 22 1/4" Inch DL6790

Console including drawer for washbowls countertop including
one cut-out, 2 drawers beneath console, 3 console supports,
59" x 22 1/4" Inch

59" x 22 1/4" Inch DL6791 L/R

Console including drawer for washbowls countertop including
one cut-out, 2 drawers beneath console, 3 console supports,
70 7/8" x 22 1/4" Inch

70 7/8" x 22 1/4" Inch DL6792 L/R

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 22 1/4" Inch

31 1/2" x 22 1/4" Inch DL6799

Washbowl # 0335500000 |< 19 1/2" Inch >|

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, 39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch DS6784 L/R

Vanity unit for console 1 pull-out compartment, compartment
consists of glass dividers and 2 boxes (small/large), 23 5/8" x
18 7/8" Inch

23 5/8" x 18 7/8" Inch XL6500

Vanity unit for console 1 pull-out compartment, compartment
consists of glass dividers and 2 boxes (small/large), 31 1/2" x
18 7/8" Inch

31 1/2" x 18 7/8" Inch XL6501

Vanity unit for console 1 pull-out compartment, compartment
consists of glass dividers and 2 boxes (small/large), 39 3/8" x
18 7/8" Inch

39 3/8" x 18 7/8" Inch XL6502

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 23 5/8" x 18 7/8" Inch

23 5/8" x 18 7/8" Inch XL6510

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 18 7/8" Inch

31 1/2" x 18 7/8" Inch XL6511

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 18 7/8" Inch

39 3/8" x 18 7/8" Inch XL6512

Vanity unit for console 1 pull-out compartment, compartment
consists of glass dividers and 2 boxes (small/large), 23 5/8" x
21 1/2" Inch

23 5/8" x 21 1/2" Inch XL6719

Vanity unit for console 1 pull-out compartment, compartment
consists of glass dividers and 2 boxes (small/large), 31 1/2" x
21 1/2" Inch

31 1/2" x 21 1/2" Inch XL6713

Vanity unit for console 1 pull-out compartment, compartment
consists of glass dividers and 2 boxes (small/large), 39 3/8" x
21 1/2" Inch

39 3/8" x 21 1/2" Inch XL6715

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 23 5/8" x 21 1/2" Inch

23 5/8" x 21 1/2" Inch XL6717

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 21 1/2" Inch

31 1/2" x 21 1/2" Inch XL6714

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 21 1/2" Inch

39 3/8" x 21 1/2" Inch XL6716

Vanity unit wall-mounted 1 opened compartment including
glass shelf, 31 1/2" x 21 1/2" Inch

31 1/2" x 21 1/2" Inch XL6718

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 23 5/8" x 18 7/8" Inch

23 5/8" x 18 7/8" Inch H26310

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 18 7/8" Inch

31 1/2" x 18 7/8" Inch H26311

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 18 7/8" Inch

39 3/8" x 18 7/8" Inch H26312

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch H26301

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 23 5/8" x 21 5/8" Inch

23 5/8" x 21 5/8" Inch H26300

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch H26302

Vanity unit for console 1 opened compartment including towel
rail, 23 5/8" x 20 1/2" Inch

23 5/8" x 20 1/2" Inch VE6540

Washbowl # 0335500000 |< 19 1/2" Inch >|

Vanity unit for console 1 opened compartment including towel
rail, 31 1/2" x 20 1/2" Inch

31 1/2" x 20 1/2" Inch VE6541

Vanity unit for console 1 opened compartment including towel
rail, 39 3/8" x 20 1/2" Inch

39 3/8" x 20 1/2" Inch VE6542

Vanity unit for console 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover, 23
5/8" x 20 1/2" Inch

23 5/8" x 20 1/2" Inch VE6550

Vanity unit for console 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover, 31
1/2" x 20 1/2" Inch

31 1/2" x 20 1/2" Inch VE6551

Vanity unit for console 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover, 39
3/8" x 20 1/2" Inch

39 3/8" x 20 1/2" Inch VE6552

Vanity unit for console 1 drawer, drawer including cut-out for
siphon and siphon cover, 23 5/8" x 20 1/2" Inch

23 5/8" x 20 1/2" Inch VE6560

Vanity unit for console 1 drawer, drawer including cut-out for
siphon and siphon cover, 31 1/2" x 20 1/2" Inch

31 1/2" x 20 1/2" Inch VE6561

Vanity unit for console 1 drawer, drawer including cut-out for
siphon and siphon cover, 39 3/8" x 20 1/2" Inch

39 3/8" x 20 1/2" Inch VE6562

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 23 5/8" x 20 1/2" Inch

23 5/8" x 20 1/2" Inch VE6570

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 20 1/2" Inch

31 1/2" x 20 1/2" Inch VE6571

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 20 1/2" Inch

39 3/8" x 20 1/2" Inch VE6572

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 22 1/4" Inch

39 3/8" x 22 1/4" Inch DL6798

Vanity unit for console 1 pull-out compartment, 12 5/8" x 18
3/4" Inch

12 5/8" x 18 3/4" Inch LC6808

Vanity unit for console 1 pull-out compartment, 16 1/2" x 18
3/4" Inch

16 1/2" x 18 3/4" Inch LC6809

Vanity unit for console 1 pull-out compartment, 20 1/2" x 18
3/4" Inch

20 1/2" x 18 3/4" Inch LC6810

Vanity unit for console 1 pull-out compartment, 24 3/8" x 18
3/4" Inch

24 3/8" x 18 3/4" Inch LC6811

Vanity unit for console 1 pull-out compartment, 32 1/4" x 18
3/4" Inch

32 1/4" x 18 3/4" Inch LC6812

Vanity unit for console 1 pull-out compartment, 40 1/8" x 18
3/4" Inch

40 1/8" x 18 3/4" Inch LC6813

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 12 5/8" x 18 3/4" Inch

12 5/8" x 18 3/4" Inch LC6818

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 16 1/2" x 18 3/4" Inch

16 1/2" x 18 3/4" Inch LC6819

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 20 1/2" x 18 3/4" Inch

20 1/2" x 18 3/4" Inch LC6820

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 24 3/8" x 18 3/4" Inch

24 3/8" x 18 3/4" Inch LC6821

Washbowl # 0335500000 |< 19 1/2" Inch >|

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 32 1/4" x 18 3/4" Inch

32 1/4" x 18 3/4" Inch LC6822

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 40 1/8" x 18 3/4" Inch

40 1/8" x 18 3/4" Inch LC6823

Vanity unit for console 1 pull-out compartment, 12 5/8" x 21
1/2" Inch

12 5/8" x 21 1/2" Inch LC6824

Vanity unit for console 1 pull-out compartment, 16 1/2" x 21
1/2" Inch

16 1/2" x 21 1/2" Inch LC6825

Vanity unit for console 1 pull-out compartment, 20 1/2" x 21
1/2" Inch

20 1/2" x 21 1/2" Inch LC6826

Vanity unit for console 1 pull-out compartment, 24 3/8" x 21
1/2" Inch

24 3/8" x 21 1/2" Inch LC6827

Vanity unit for console 1 pull-out compartment, 32 1/4" x 21
1/2" Inch

32 1/4" x 21 1/2" Inch LC6828

Vanity unit for console 1 pull-out compartment, 40 1/8" x 21
1/2" Inch

40 1/8" x 21 1/2" Inch LC6829

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 12 5/8" x 21 1/2" Inch

12 5/8" x 21 1/2" Inch LC6834

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 16 1/2" x 21 1/2" Inch

16 1/2" x 21 1/2" Inch LC6835

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 20 1/2" x 21 1/2" Inch

20 1/2" x 21 1/2" Inch LC6836

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 24 3/8" x 21 1/2" Inch

24 3/8" x 21 1/2" Inch LC6837

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 32 1/4" x 21 1/2" Inch

32 1/4" x 21 1/2" Inch LC6838

Vanity unit for console with 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 40 1/8" x 21 1/2" Inch

40 1/8" x 21 1/2" Inch LC6839

Console for above-counter basin and countertop basin 1
console with one cut-out, Width min. see ordering information,
Width max. 78 3/4", price per section of 3 7/8", basic price
until 31 1/2", 21 5/8" Inch

21 5/8" Inch LC096C

Console for above-counter basin and countertop basin 1
console with one cut-out, Width min. see ordering information,
Width max. 78 3/4", price per section of 3 7/8", basic price
until 31 1/2", 18 7/8" Inch

18 7/8" Inch LC094C

Console for above-counter basin and countertop basin 1
console with two cut-outs, Width min. see ordering
information, Width max. 78 3/4", price per section of 3 7/8",
basic price until 31 1/2", 21 5/8" Inch

21 5/8" Inch LC097C

Console for above-counter basin and countertop basin 1
console with two cut-outs, Width min. see ordering
information, Width max. 78 3/4", price per section of 3 7/8",
basic price until 31 1/2", 18 7/8" Inch

18 7/8" Inch LC095C

All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non­binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

Washbowl # 0335500000 |< 19 1/2" Inch >|
