Duravit DRV1776 Installation & Assembly

Page 1
Toilet seat and coverToilet seat and cover DimensionDimension WeightWeight Order numberOrder number
elongated, hinges stainless steel, without slow close
ColorsColors
00 White
VariantVariant
4.4 lb 0063320000
Suitable productsSuitable products
Two-Piece toilet (without tank), suitable for SensoWash Starck, syphonic, 12" rough-in, vertical outlet, cUPC® listed*, WaterSense® listed, 1.28 gpf, 14 5/8" x 27 3/4" Inch
14 5/8" x 27 3/4" Inch 212501
One-Piece toilet suitable for SensoWash Starck, syphonic, 12" rough-in, with single flush mechanism, with side lever, 3" flapper valve, vertical outlet, cUPC® listed*, WaterSense® listed, 1.28 gpf, 14 5/8" x 28 1/8" Inch
14 5/8" x 28 1/8" Inch 212001
Toilet wall-mounted washdown model, suitable for SensoWash Starck, Durafix included, cUPC® listed*, WaterSense® listed, 14 1/8" x 24 3/8" Inch
14 1/8" x 24 3/8" Inch 222609
One-Piece toilet back-to-wall, syphonic, 12" rough-in, with single flush piston valve, top flush, suitable for SensoWash Starck, cUPC® listed*, WaterSense® listed, 1.28 gpf, 15 3/4" x 28 1/8" Inch
15 3/4" x 28 1/8" Inch 212301
Two-Piece toilet (without tank), suitable for SensoWash Starck, syphonic, 12" rough-in, vertical outlet, cUPC® listed*, WaterSense® listed, 1.28 gpf, 14 5/8" x 27 1/2" Inch
14 5/8" x 27 1/2" Inch 212601
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non­binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

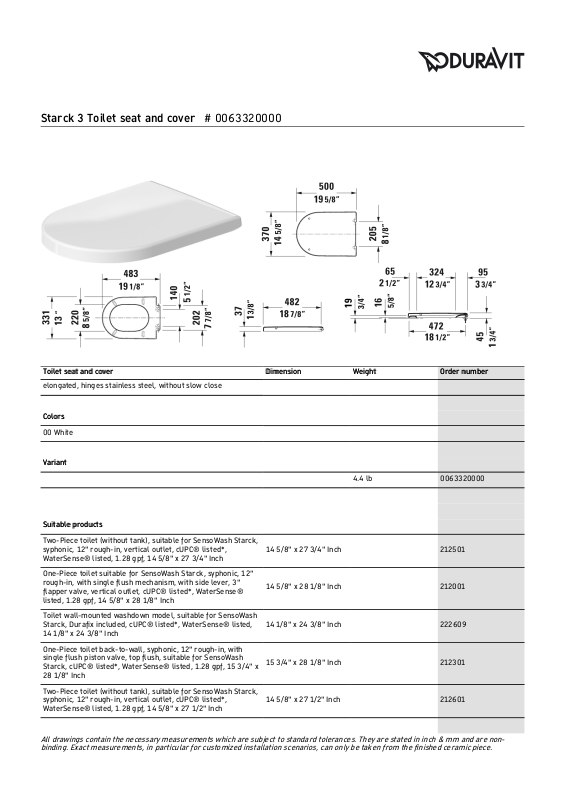

Starck 3 Toilet seat and cover # 0063320000
