BathtubBathtub DimensionDimension WeightWeight Order numberOrder number
rectangle, with one backrest slope left, cUPC® listed*, Sanitary
acrylic , Filling capacity 43 gal , water level 14 Inch
ColorsColors
00 White
VariantVariant
drop-in, undermount or for panel, incl. support frame, Base tub 66 7/8" x 29 1/2" Inch 66 lb 700133000000090
InfoboxInfobox
* Complies with the following standards: CSA B45.5/IAPMO Z124
Suitable productsSuitable products
Tile flange , 790112
Cable-driven waste and overflow , 790220
Bathtub anchors for mounting and support of bathtubs and
shower trays, 3 pieces,
790103
Cable-driven waste and overflow brass, 790250
Support frame (included), for bathtubs, 790133
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonÂbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

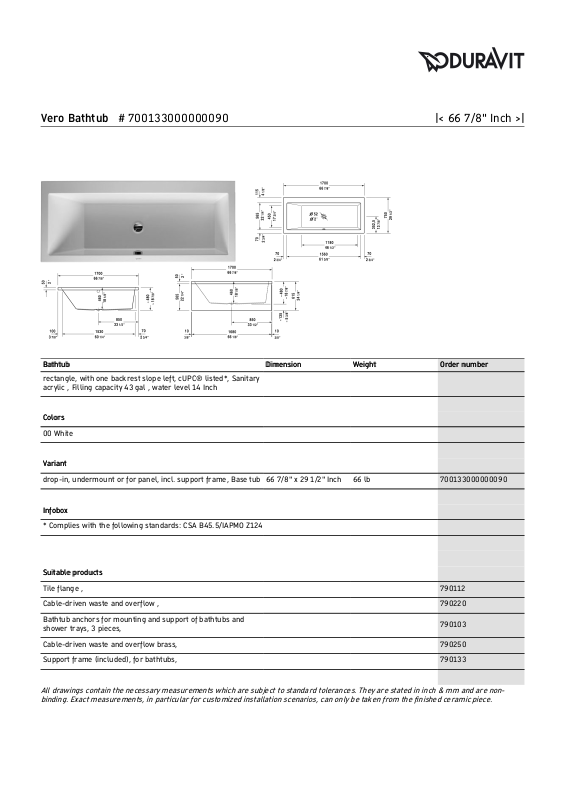

Vero Bathtub # 700133000000090 |< 66 7/8" Inch >|
