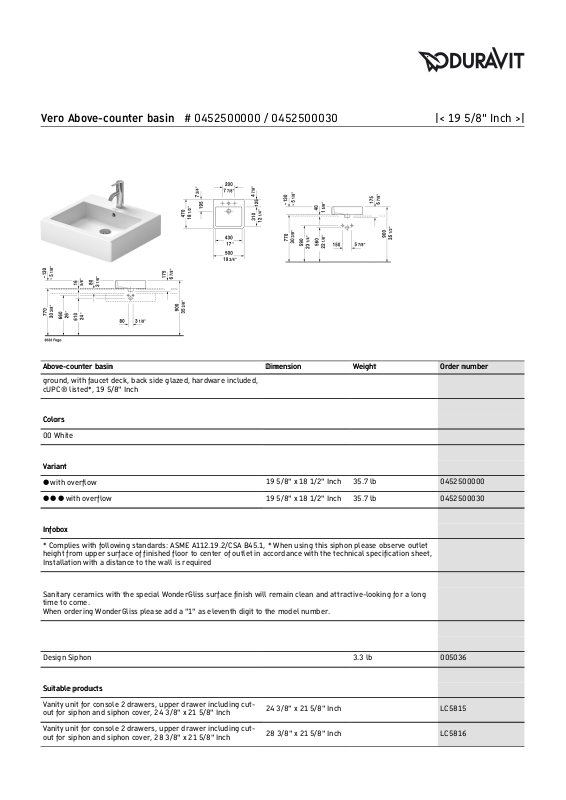

Page 1
Above-counter basinAbove-counter basin DimensionDimension WeightWeight Order numberOrder number
ground, with faucet deck, back side glazed, hardware included,
cUPC® listed*, 19 5/8" Inch
ColorsColors
00 White
VariantVariant
p with overflow
19 5/8" x 18 1/2" Inch 35.7 lb 0452500000
p p p with overflow
19 5/8" x 18 1/2" Inch 35.7 lb 0452500030
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, * When using this siphon please observe outlet
height from upper surface of finished floor to center of outlet in accordance with the technical specification sheet,
Installation with a distance to the wall is required
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 24 3/8" x 21 5/8" Inch
24 3/8" x 21 5/8" Inch LC5815
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 28 3/8" x 21 5/8" Inch
28 3/8" x 21 5/8" Inch LC5816
Vero Above-counter basin # 0452500000 / 0452500030 |< 19 5/8" Inch >|
Page 2
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 32 1/4" x 21 5/8" Inch
32 1/4" x 21 5/8" Inch LC5817
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 36 1/4" x 21 5/8" Inch
36 1/4" x 21 5/8" Inch LC5818
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 40 1/8" x 21 5/8" Inch
40 1/8" x 21 5/8" Inch LC5819
Vanity unit for console wall-mounted 1 pull-out compartment,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4900
Vanity unit for console wall-mounted 1 pull-out compartment,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4901
Vanity unit for console wall-mounted 1 pull-out compartment,
47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch XS4910
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch XS4911
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4920
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4921
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4904 R/L
Vanity unit for console wall-mounted 4 drawers, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4914 L/R
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch XS4923 R/L
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4924 L/R
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4907 B
Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4917 B
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4927 B
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch LC102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch LC103C
Vero Above-counter basin # 0452500000 / 0452500030 |< 19 5/8" Inch >|
Page 3
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch LC106C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch LC107C
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4977 L/R
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with two cut-outs, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4978 B
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch WT4985
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch WT4986
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4987 L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with two cutouts, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4988 B
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with one cut-out, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4982 L/R
Vanity unit wall-mounted 1 pull-out compartment, 1 console
with two cut-outs, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4983 B
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch WT4990
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch WT4991
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with one cut-out,
51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4992 L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, 1 console with two cutouts, 51 1/8" x 21 5/8" Inch
51 1/8" x 21 5/8" Inch WT4993 B
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Above-counter basin # 0452500000 / 0452500030 |< 19 5/8" Inch >|
