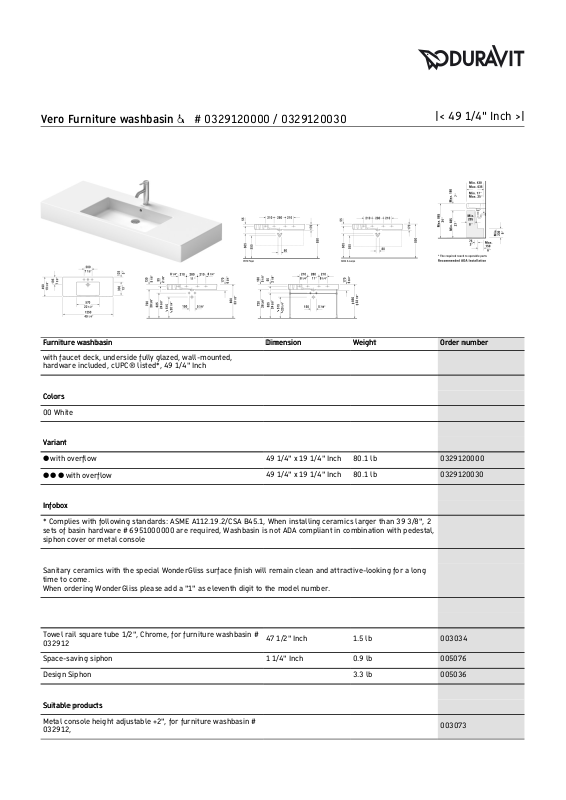

Page 1
Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, underside fully glazed, wall-mounted,
hardware included, cUPC® listed*, 49 1/4" Inch
ColorsColors
00 White
VariantVariant
p with overflow
49 1/4" x 19 1/4" Inch 80.1 lb 0329120000
p p p with overflow
49 1/4" x 19 1/4" Inch 80.1 lb 0329120030
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, When installing ceramics larger than 39 3/8", 2
sets of basin hardware # 6951000000 are required, Washbasin is not ADA compliant in combination with pedestal,
siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Towel rail square tube 1/2", Chrome, for furniture washbasin #
032912
47 1/2" Inch 1.5 lb 003034
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Metal console height adjustable +2", for furniture washbasin #
032912,
003073
Vero Furniture washbasin Ÿ # 0329120000 / 0329120030
|< 49 1/4" Inch >|
Page 2
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
032912, 47 1/4" x 17 7/8" Inch
47 1/4" x 17 7/8" Inch KT6692
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032912, 47 1/4"
x 17 7/8" Inch
47 1/4" x 17 7/8" Inch KT6642
Vanity unit wall-mounted 1 pull-out compartment, with
compartment inserts that consist of glass dividers and 2 boxes
(small/large), for Vero # 032912, 47 1/4" x 18 3/8" Inch
47 1/4" x 18 3/8" Inch XL6054
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032912, 47 1/4"
x 18 3/8" Inch
47 1/4" x 18 3/8" Inch XL6354
Vanity unit floorstanding 2 pull-out compartments, for Vero #
032912, 47 1/4" x 18 1/2" Inch
47 1/4" x 18 1/2" Inch XL6545
Vanity unit floorstanding 3 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 032912, 47 1/4"
x 18 1/2" Inch
47 1/4" x 18 1/2" Inch XL6555
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Furniture washbasin Ÿ # 0329120000 / 0329120030
|< 49 1/4" Inch >|
