Page 1
WashbasinWashbasin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, underside fully glazed,
hardware included, wall-mounted, cUPC® listed*, 21 5/8" Inch
ColorsColors
00 White
VariantVariant
p 21 5/8" x 16 7/8" Inch 35.5 lb 23105500002
p p p 21 5/8" x 16 7/8" Inch 35.5 lb 23105500302
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1
Suitable productsSuitable products
Siphon cover for # 231065, 231060, 231055, 034265, 034285,
034210, 034812,
085718
Pedestal for # 231065, 231060, 231055, 034265, 034285,
034210, 034812,
086327
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonÂbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

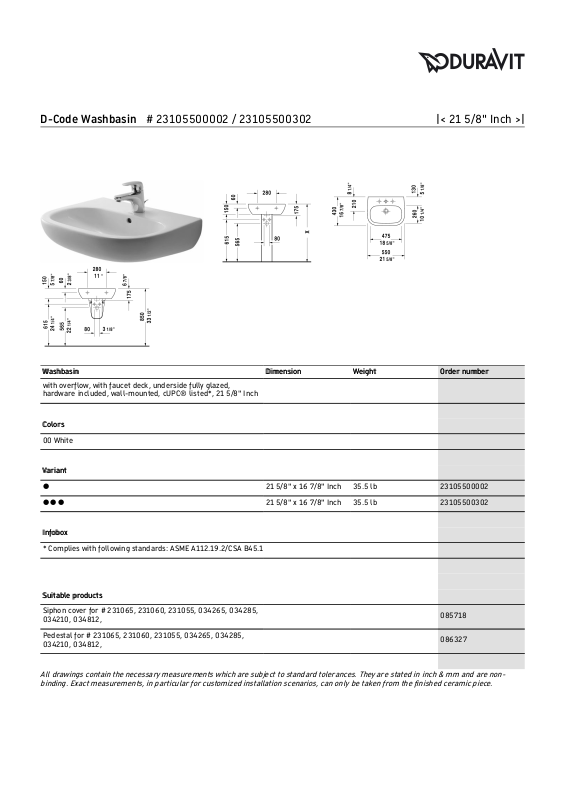

D-Code Washbasin # 23105500002 / 23105500302 |< 21 5/8" Inch >|
