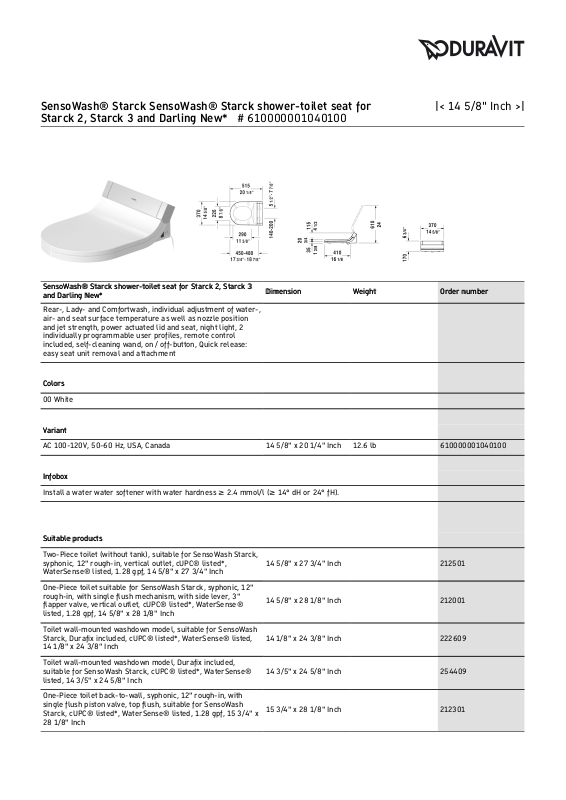

SensoWash® Starck shower-toilet seat for Starck 2, Starck 3SensoWash® Starck shower-toilet seat for Starck 2, Starck 3
and Darling New*and Darling New*
DimensionDimension WeightWeight Order numberOrder number
Rear-, Lady- and Comfortwash, individual adjustment of water-,
air- and seat surface temperature as well as nozzle position
and jet strength, power actuated lid and seat, night light, 2
individually programmable user profiles, remote control
included, self-cleaning wand, on / off-button, Quick release:
easy seat unit removal and attachment
ColorsColors
00 White
VariantVariant
AC 100-120V, 50-60 Hz, USA, Canada 14 5/8" x 20 1/4" Inch 12.6 lb 610000001040100
InfoboxInfobox
Install a water water softener with water hardness ≥ 2.4 mmol/l (≥ 14° dH or 24° fH).
Suitable productsSuitable products
Two-Piece toilet (without tank), suitable for SensoWash Starck,
syphonic, 12" rough-in, vertical outlet, cUPC® listed*,
WaterSense® listed, 1.28 gpf, 14 5/8" x 27 3/4" Inch
14 5/8" x 27 3/4" Inch 212501
One-Piece toilet suitable for SensoWash Starck, syphonic, 12"
rough-in, with single flush mechanism, with side lever, 3"
flapper valve, vertical outlet, cUPC® listed*, WaterSense®
listed, 1.28 gpf, 14 5/8" x 28 1/8" Inch
14 5/8" x 28 1/8" Inch 212001
Toilet wall-mounted washdown model, suitable for SensoWash
Starck, Durafix included, cUPC® listed*, WaterSense® listed,
14 1/8" x 24 3/8" Inch
14 1/8" x 24 3/8" Inch 222609
Toilet wall-mounted washdown model, Durafix included,
suitable for SensoWash Starck, cUPC® listed*, WaterSense®
listed, 14 3/5" x 24 5/8" Inch
14 3/5" x 24 5/8" Inch 254409
One-Piece toilet back-to-wall, syphonic, 12" rough-in, with
single flush piston valve, top flush, suitable for SensoWash
Starck, cUPC® listed*, WaterSense® listed, 1.28 gpf, 15 3/4" x
28 1/8" Inch
15 3/4" x 28 1/8" Inch 212301
SensoWash® Starck SensoWash® Starck shower-toilet seat for
Starck 2, Starck 3 and Darling New* # 610000001040100
|< 14 5/8" Inch >|
Page 2
Two-Piece toilet (without tank), suitable for SensoWash Starck,
syphonic, 12" rough-in, vertical outlet, cUPC® listed*,
WaterSense® listed, 1.28 gpf, 14 5/8" x 27 1/2" Inch
14 5/8" x 27 1/2" Inch 212601
Toilet wall-mounted washdown model, Durafix included,
suitable for SensoWash Starck, cUPC® listed*, WaterSense®
listed, 14 1/8" x 24 3/8" Inch
14 1/8" x 24 3/8" Inch 253309
One-Piece toilet suitable for SensoWash Starck, syphonic, 12"
rough-in, with single flush piston valve, top flush, vertical
outlet, cUPC® listed*, WaterSense® listed, 1.28 gpf, 14 3/4" x
28 1/8" Inch
14 3/4" x 28 1/8" Inch 213301
One-Piece toilet Duravit Rimless® rimless, syphonic, 12"
rough-in, suitable for SensoWash Starck, vertical outlet, cUPC®
listed*, WaterSense® listed, 14 1/8" x 28 3/4" Inch
14 1/8" x 28 3/4" Inch 217301
Toilet kit One-Piece toilet & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 15 3/4" x 28 1/8" Inch
15 3/4" x 28 1/8" Inch D21020
Toilet kit Toilet bowl, Tank & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 16" x 27 1/2" Inch
16" x 27 1/2" Inch D21010
Toilet kit One-Piece toilet & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 14 5/8" x 28 3/4" Inch
14 5/8" x 28 3/4" Inch D42028
Toilet kit One-Piece toilet & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 14 5/8" x 28 3/4" Inch
14 5/8" x 28 3/4" Inch D42029
Toilet kit One-Piece toilet & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 14 3/4" x 28 1/8" Inch
14 3/4" x 28 1/8" Inch D16549
Toilet kit Toilet bowl, Tank & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 15 3/8" x 27 3/4" Inch
15 3/8" x 27 3/4" Inch D19100
Toilet kit One-Piece toilet & SensoWash® Starck shower-toilet
seat, WaterSense® listed, 14 5/8" x 28 1/8" Inch
14 5/8" x 28 1/8" Inch D19101
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
SensoWash® Starck SensoWash® Starck shower-toilet seat for
Starck 2, Starck 3 and Darling New* # 610000001040100
|< 14 5/8" Inch >|
