Toilet kitToilet kit DimensionDimension WeightWeight Order numberOrder number
One-Piece toilet for SensoWash® & SensoWash® Starck C
shower-toilet seat
ColorsColors
00 White
VariantVariant
15 3/8" x 28" Inch 140.1 lb D4102200
Suitable productsSuitable products
SensoWash® Starck C shower-toilet seat for Happy D.2* Rear-,
Lady- and Comfortwash, power actuated lid and seat, individual
adjustment of water-, air- and seat surface temperature as well
as nozzle position and jet strength, remote control included,
with concealed connections, 2 individually programmable user
profiles, heated seat, night light, warm air dryer, Quick release:
easy seat unit removal and attachment, on / off-button, selfcleaning wand, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610300
One-Piece toilet for SensoWash® only in combination with
SensoWash, syphonic, 12" rough-in, with dual flush piston valve,
top flush, connecting elements for SensoWash with concealed
connections included, vertical outlet, cUPC® listed*, 1.32/0.92
gpf, 15 3/8" x 28" Inch
15 3/8" x 28" Inch 212151
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

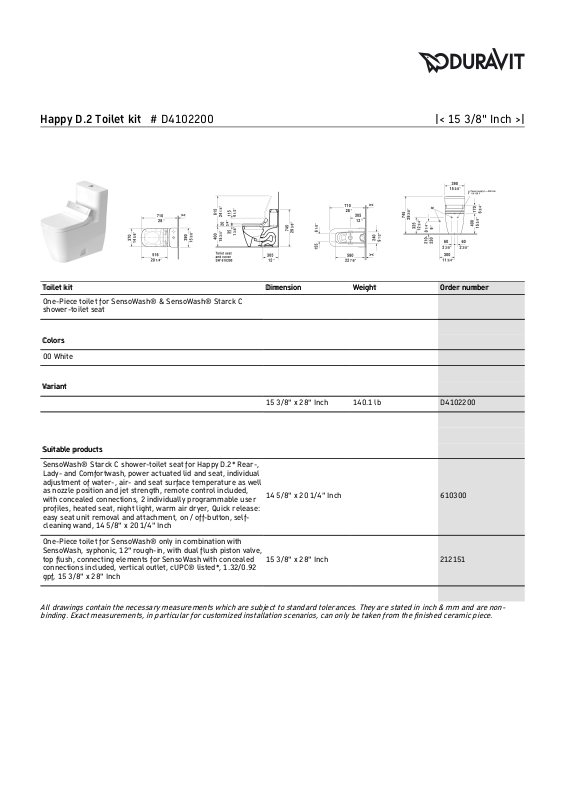

Happy D.2 Toilet kit # D4102200 |< 15 3/8" Inch >|
