Page 1
Two-Piece toiletTwo-Piece toilet DimensionDimension WeightWeight Order numberOrder number
(without tank), syphonic, 12" rough-in, vertical outlet, cUPC®
listed*, WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.28 gpf
13 3/4" x 27" Inch 57.6 lb 011701..62
© 1.28 gpf
13 3/4" x 27" Inch 57.6 lb 011701..62
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
15" Inch 1.1 lb 001431
Suitable productsSuitable products

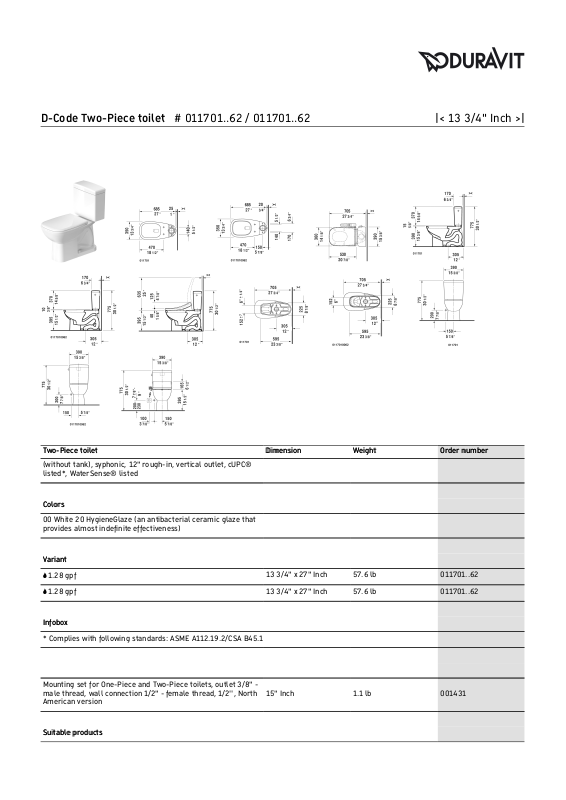

D-Code Two-Piece toilet # 011701..62 / 011701..62 |< 13 3/4" Inch >|
Page 2
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
006741
Tank with single flush mechanism, with side lever, 3" flapper
valve, bottom left supply, cUPC® listed*, WaterSense® listed,
1.28 gpf, 15 3/8" x 6 3/4" Inch
15 3/8" x 6 3/4" Inch 092720
Toilet seat and cover elongated, hinges stainless steel,
removable, with slow close,
006209
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
D-Code Two-Piece toilet # 011701..62 / 011701..62 |< 13 3/4" Inch >|
