Page 1
Furniture washbasin asymmetricFurniture washbasin asymmetric DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, overflow clip Chrome included,
bowl on right side, hardware included, wall-mounted, 49 1/4"
Inch
ColorsColors
00 White
VariantVariant
p 49 1/4" x 19 1/2" Inch 77.2 lb 2334120000
p p p 49 1/4" x 19 1/2" Inch 77.2 lb 2334120030
• 49 1/4" x 19 1/2" Inch 77.2 lb 2334120060
InfoboxInfobox
Washbasin is not ADA compliant in combination with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Suitable productsSuitable products
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for P3 Comforts # 233412
basin right, 48" x 18 7/8" Inch
48" x 18 7/8" Inch LC6255
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for P3 Comforts # 233412
basin right, 47 5/8" x 18 3/4" Inch
47 5/8" x 18 3/4" Inch XS4189

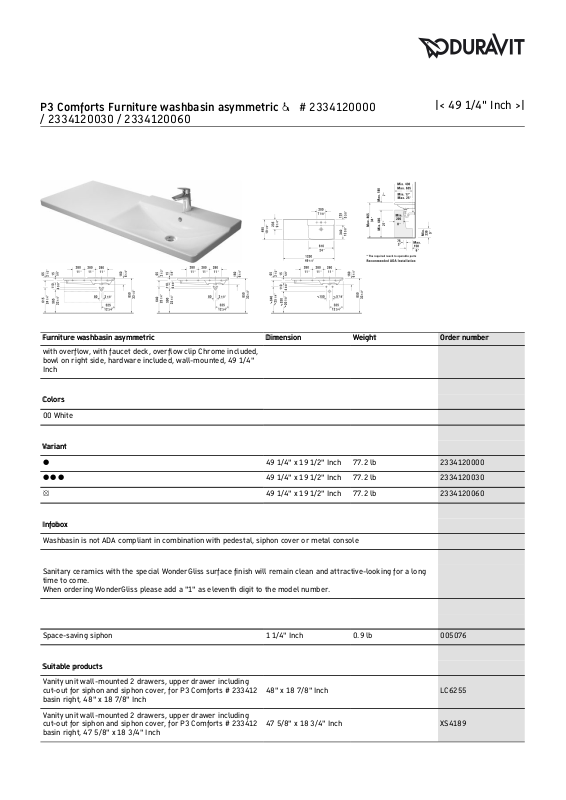

P3 Comforts Furniture washbasin asymmetric Ÿ # 2334120000
/ 2334120030 / 2334120060
|< 49 1/4" Inch >|
Page 2
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover,
integrated legs with height adjustment, for P3 Comforts #
233412 basin right, 47 5/8" x 18 3/4" Inch
47 5/8" x 18 3/4" Inch XS4469
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for P3 Comforts # 233412
basin right, 47 5/8" x 18 1/2" Inch
47 5/8" x 18 1/2" Inch XV4139
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for P3
Comforts # 233412 basin right, 47 5/8" x 18 1/2" Inch
47 5/8" x 18 1/2" Inch XV4499
Vanity unit wall-mounted 1 pull-out compartment, for P3
Comforts # 233212, 233312, 233412, 48" x 19" Inch
48" x 19" Inch LC6153
Vanity unit floorstanding 2 pull-out compartments, for P3
Comforts # 233212, 233312, 233412, 48" x 19" Inch
48" x 19" Inch LC6603
Vanity unit wall-mounted 1 pull-out compartment, for P3
Comforts # 233212, 233312, 233412, 47 5/8" x 18 3/4" Inch
47 5/8" x 18 3/4" Inch XS4083
Vanity unit wall-mounted 1 pull-out compartment, for P3
Comforts # 233212, 233312, 233412, 47 5/8" x 18 1/2" Inch
47 5/8" x 18 1/2" Inch XV4018
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
P3 Comforts Furniture washbasin asymmetric Ÿ # 2334120000
/ 2334120030 / 2334120060
|< 49 1/4" Inch >|
