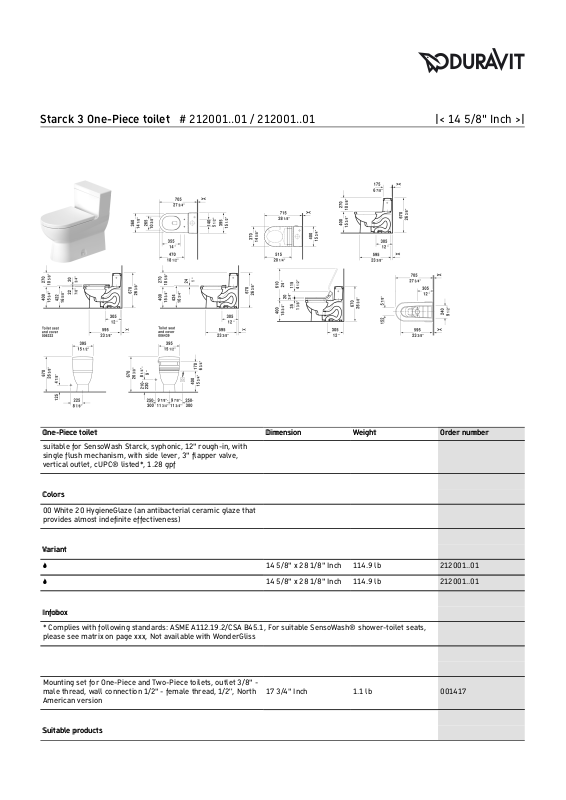

Page 1
One-Piece toiletOne-Piece toilet DimensionDimension WeightWeight Order numberOrder number
suitable for SensoWash Starck, syphonic, 12" rough-in, with
single flush mechanism, with side lever, 3" flapper valve,
vertical outlet, cUPC® listed*, 1.28 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 14 5/8" x 28 1/8" Inch 114.9 lb 212001..01
© 14 5/8" x 28 1/8" Inch 114.9 lb 212001..01
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, For suitable SensoWash® shower-toilet seats,
please see matrix on page xxx, Not available with WonderGliss
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
Starck 3 One-Piece toilet # 212001..01 / 212001..01 |< 14 5/8" Inch >|
Page 2
Toilet seat and cover elongated, hinges stainless steel,
removable, with slow close,
006339
SensoWash® Starck shower-toilet seat for Starck 2, Starck 3
and Darling New* Rear-, Lady- and Comfortwash, individual
adjustment of water-, air- and seat surface temperature as well
as nozzle position and jet strength, power actuated lid and seat,
night light, 2 individually programmable user profiles, remote
control included, self-cleaning wand, on / off-button, Quick
release: easy seat unit removal and attachment, 14 5/8" x 20
1/4" Inch
14 5/8" x 20 1/4" Inch 610000
Toilet seat ring elongated, open front, hinges plastic, without
slow close,
006431
Toilet seat ring elongated, open front, hinges plastic, with slow
close,
006439
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
006332
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck 3 One-Piece toilet # 212001..01 / 212001..01 |< 14 5/8" Inch >|
