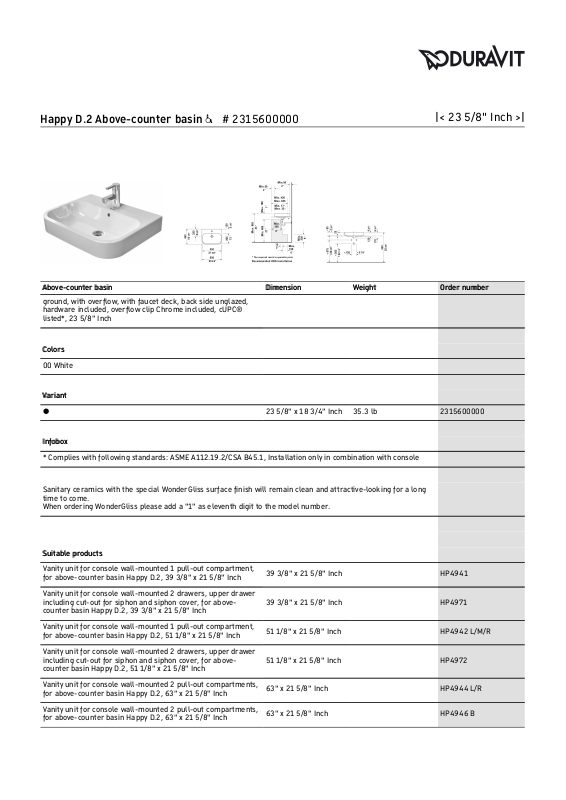

Duravit CBWE2179 Specifications

Above-counter basinAbove-counter basin DimensionDimension WeightWeight Order numberOrder number

ground, with overflow, with faucet deck, back side unglazed,
hardware included, overflow clip Chrome included, cUPC®
listed*, 23 5/8" Inch

ColorsColors

00 White

VariantVariant

p 23 5/8" x 18 3/4" Inch 35.3 lb 2315600000

InfoboxInfobox

* Complies with following standards: ASME A112.19.2/CSA B45.1, Installation only in combination with console

Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.

Suitable productsSuitable products

Vanity unit for console wall-mounted 1 pull-out compartment,
for above-counter basin Happy D.2, 39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch HP4941

Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, for above­counter basin Happy D.2, 39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch HP4971

Vanity unit for console wall-mounted 1 pull-out compartment,
for above-counter basin Happy D.2, 51 1/8" x 21 5/8" Inch

51 1/8" x 21 5/8" Inch HP4942 L/M/R

Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, for above­counter basin Happy D.2, 51 1/8" x 21 5/8" Inch

51 1/8" x 21 5/8" Inch HP4972

Vanity unit for console wall-mounted 2 pull-out compartments,
for above-counter basin Happy D.2, 63" x 21 5/8" Inch

63" x 21 5/8" Inch HP4944 L/R

Vanity unit for console wall-mounted 2 pull-out compartments,
for above-counter basin Happy D.2, 63" x 21 5/8" Inch

63" x 21 5/8" Inch HP4946 B

Happy D.2 Above-counter basin Ÿ # 2315600000

|< 23 5/8" Inch >|

Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, for above­counter basin Happy D.2, 63" x 21 5/8" Inch

63" x 21 5/8" Inch HP4973 L/R

Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, for above­counter basin Happy D.2, 63" x 21 5/8" Inch

63" x 21 5/8" Inch HP4974 B

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 31
1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch KT6694

Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 31 1/2" x 21 5/8"
Inch

31 1/2" x 21 5/8" Inch KT6654

Vanity unit wall-mounted 4 drawers, drawer beneath basin
including cut-out for siphon and siphon cover, 1 countertop with
one cut-out or two cut-outs, for 1 or 2 above-counter basin(s),
55 1/8" x 21 5/8" Inch

55 1/8" x 21 5/8" Inch KT6657 B/L/R

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 27 1/2" x 20 3/8" Inch

27 1/2" x 20 3/8" Inch VE5616

Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 39 3/8" x 21 5/8"
Inch

39 3/8" x 21 5/8" Inch KT6655

Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 47 1/4" x 21 5/8"
Inch

47 1/4" x 21 5/8" Inch KT6656

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch DS5319

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 20 3/8" Inch

31 1/2" x 20 3/8" Inch VE5617

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 47
1/4" x 21 5/8" Inch

47 1/4" x 21 5/8" Inch KT6696

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 35 3/8" x 20 3/8" Inch

35 3/8" x 20 3/8" Inch VE5618

Vanity unit wall-mounted 2 pull-out compartments, 1
countertop with one cut-out or two cut-outs, for 1 or 2 above­counter basin(s), 55 1/8" x 21 5/8" Inch

55 1/8" x 21 5/8" Inch KT6697 B/L/R

Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch

63" x 21 5/8" Inch XS4907 B

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 27 1/2" x 21 5/8" Inch

27 1/2" x 21 5/8" Inch DS5316

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 20 3/8" Inch

39 3/8" x 20 3/8" Inch VE5619

Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch

31 1/2" x 21 5/8" Inch XS4910

Vanity unit for console wall-mounted 2 pull-out compartments,
55 1/8" x 2" Inch

55 1/8" x 2" Inch XS4906 B

Happy D.2 Above-counter basin Ÿ # 2315600000

|< 23 5/8" Inch >|

Vanity unit for console wall-mounted 1 pull-out compartment,
31 1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch XS4900

Vanity unit for console wall-mounted 4 drawers, 55 1/8" x 21
5/8" Inch

55 1/8" x 21 5/8" Inch XS4913 L/R

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 27 1/2" x 21 5/8" Inch

27 1/2" x 21 5/8" Inch XL5416

Vanity unit for console wall-mounted 1 pull-out compartment,
39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch XS4901

Vanity unit for console wall-mounted 2 pull-out compartments,
55 1/8" x 21 5/8" Inch

55 1/8" x 21 5/8" Inch XS4903 L/R

Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch

63" x 21 5/8" Inch XS4904 R/L

Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 55 1/8" x 21 5/8"
Inch

55 1/8" x 21 5/8" Inch XS4916 B

Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch

39 3/8" x 21 5/8" Inch XS4911

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 28 3/8" x 21 5/8" Inch

28 3/8" x 21 5/8" Inch LC5816

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 28 3/8" x 21 5/8" Inch

28 3/8" x 21 5/8" Inch BR5116

Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 63" x 21 5/8"
Inch

63" x 21 5/8" Inch XS4917 B

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 28 7/8" x 21 5/8" Inch

28 7/8" x 21 5/8" Inch XV5916

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 32 3/4" x 21 5/8" Inch

32 3/4" x 21 5/8" Inch XV5917

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch BR104C

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch XL5417

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 31 1/2" x 21 5/8" Inch

31 1/2" x 21 5/8" Inch DS5317

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 32 1/4" x 21 5/8" Inch

32 1/4" x 21 5/8" Inch LC5817

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 32 1/4" x 21 5/8" Inch

32 1/4" x 21 5/8" Inch BR5117

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 35 3/8" x 21 5/8" Inch

35 3/8" x 21 5/8" Inch XL5418

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 39 3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch XL5419

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 35 3/8" x 21 5/8" Inch

35 3/8" x 21 5/8" Inch DS5318

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 36 1/4" x 21 5/8" Inch

36 1/4" x 21 5/8" Inch LC5818

Happy D.2 Above-counter basin Ÿ # 2315600000

|< 23 5/8" Inch >|

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 40 1/8" x 21 5/8" Inch

40 1/8" x 21 5/8" Inch LC5819

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 40 1/8" x 21 5/8" Inch

40 1/8" x 21 5/8" Inch BR5119

Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 47 1/4" x 21 5/8"
Inch

47 1/4" x 21 5/8" Inch XS4912

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 36 3/4" x 21 5/8" Inch

36 3/4" x 21 5/8" Inch XV5918

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 40 5/8" x 21 5/8" Inch

40 5/8" x 21 5/8" Inch XV5919

Vanity unit for console 2 drawers, upper drawer including cut­out for siphon and siphon cover, 36 1/4" x 21 5/8" Inch

36 1/4" x 21 5/8" Inch BR5118

Vanity unit for console wall-mounted 4 drawers, 63" x 21 5/8"
Inch

63" x 21 5/8" Inch XS4914 L/R

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch DS104C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch LC101C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch BR100C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch BR101C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch DS100C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch DS101C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch LC100C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch LC104C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch LC105C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch XL100C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch XL101C

Happy D.2 Above-counter basin Ÿ # 2315600000

|< 23 5/8" Inch >|

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch XL105C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch XV100C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 3/4" thickness, 18 7/8" Inch

18 7/8" Inch XV101C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch XV105C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch BR105C

Console for above-counter basin and vanity basin Compact 1
console with two cut-outs, price per section of 3 7/8", basic
price until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch DS105C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch XL104C

Console for above-counter basin and vanity basin Compact 1
console with one cut-out, price per section of 3 7/8", basic price
until 31 1/2", 1 1/8" thickness, 18 7/8" Inch

18 7/8" Inch XV104C

Vanity unit for console wall-mounted 1 pull-out compartment,
47 1/4" x 21 5/8" Inch

47 1/4" x 21 5/8" Inch XS4902

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch BR103C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch BR106C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch BR107C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch DS103C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch DS106C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch DS107C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch LC103C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch LC106C

Happy D.2 Above-counter basin Ÿ # 2315600000

|< 23 5/8" Inch >|

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch LC107C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch XL102C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch XL103C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch XL106C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch XL107C

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch XV103C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch BR102C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch LC102C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch XV102C

Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch

21 5/8" Inch DS102C

Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 39
3/8" x 21 5/8" Inch

39 3/8" x 21 5/8" Inch KT6695

Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch

21 5/8" Inch XV107C

All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are non­binding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

Happy D.2 Above-counter basin Ÿ # 2315600000

|< 23 5/8" Inch >|
