Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, underside fully glazed, hardware included,
wall-mounted, cUPC® listed*
ColorsColors
00 White
VariantVariant
p with overflow 47 1/4" x 18 1/2" Inch 73.9 lb 0454120000
p p p with overflow 47 1/4" x 18 1/2" Inch 73.9 lb 0454120030
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, When installing ceramics larger than 39 3/8", 2
sets of basin hardware # 6951000000 are required, Washbasin is not ADA compliant in combination with pedestal,
siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Towel rail square tube 1/2", Chrome 45 1/4" Inch 1.8 lb 003033
Suitable productsSuitable products
Metal console height adjustable +2", for washbasin # 045412,
235012,
003074
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
045412, 45 1/4" x 17 3/8" Inch
45 1/4" x 17 3/8" Inch KT6689

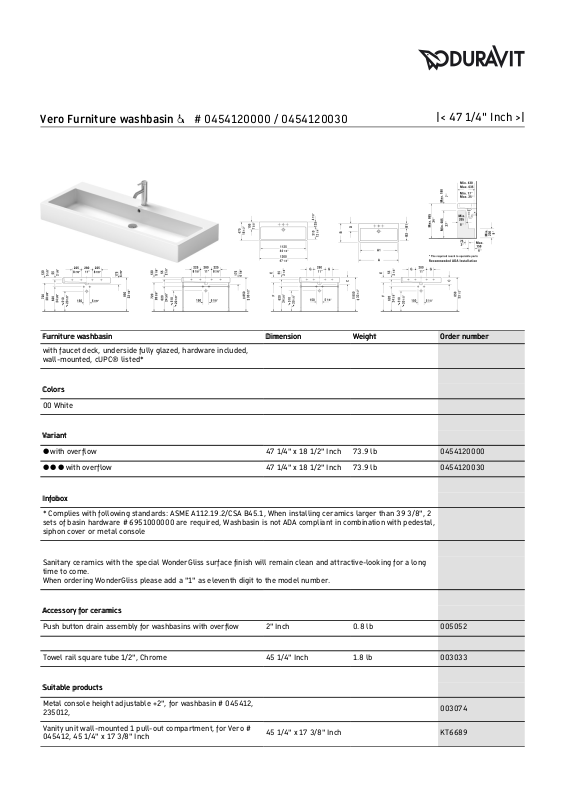

Vero Furniture washbasin Ÿ # 0454120000 / 0454120030
|< 47 1/4" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045412, 45 1/4"
x 17 3/8" Inch
45 1/4" x 17 3/8" Inch KT6639
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), for Vero # 045412, 45 1/4" x 17 1/2" Inch
45 1/4" x 17 1/2" Inch XL6047
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045412, 45 1/4"
x 17 1/2" Inch
45 1/4" x 17 1/2" Inch XL6347
Vanity unit wall-mounted 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover, for
Vero # 045412, 45 1/4" x 16 7/8" Inch
45 1/4" x 16 7/8" Inch VE6108
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045412, 45 1/4"
x 16 7/8" Inch
45 1/4" x 16 7/8" Inch VE6208
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Furniture washbasin Ÿ # 0454120000 / 0454120030
|< 47 1/4" Inch >|
