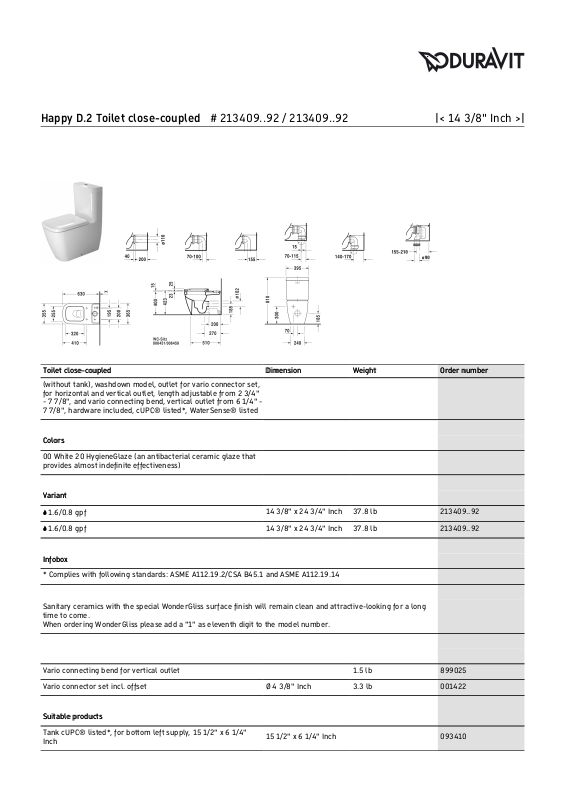

Page 1
Toilet close-coupledToilet close-coupled DimensionDimension WeightWeight Order numberOrder number
(without tank), washdown model, outlet for vario connector set,
for horizontal and vertical outlet, length adjustable from 2 3/4"
- 7 7/8", and vario connecting bend, vertical outlet from 6 1/4" 7 7/8", hardware included, cUPC® listed*, WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 3/8" x 24 3/4" Inch 37.8 lb 213409..92
© 1.6/0.8 gpf
14 3/8" x 24 3/4" Inch 37.8 lb 213409..92
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Vario connecting bend for vertical outlet 1.5 lb 899025
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422
Suitable productsSuitable products
Tank cUPC® listed*, for bottom left supply, 15 1/2" x 6 1/4"
Inch
15 1/2" x 6 1/4" Inch 093410
Happy D.2 Toilet close-coupled # 213409..92 / 213409..92 |< 14 3/8" Inch >|
Page 2
Toilet seat and cover removable, hinges stainless steel, without
slow close,
006451
Toilet seat and cover removable, hinges stainless steel, with
slow close,
006459
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Happy D.2 Toilet close-coupled # 213409..92 / 213409..92 |< 14 3/8" Inch >|
