Toilet wall-mounted for SensoWash®Toilet wall-mounted for SensoWash® DimensionDimension WeightWeight Order numberOrder number
washdown model, only in combination with SensoWash,
connecting elements for SensoWash with concealed
connections included, Durafix included, cUPC® listed*,
WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 5/8" x 24 3/8" Inch 64 lb 222659..92
© 1.6/0.8 gpf
14 5/8" x 24 3/8" Inch 64 lb 222659..92
InfoboxInfobox
Durafix for concealed installation is included, Wall-mounted toilet is ADA compliant, when installed with a seat
height of 17" - 19" from the finished floor, * Complies with following standards: ASME A112.19.2/CSA B45.1 and
ASME A112.19.14, In-wall tank & carrier and actuator plate required for installation, If using in-wall tank & carrier
other than DuraSystem, # 100691 is mandatory for SensoWash® installation
Noise reduction gasket for wall-mounted toilet 0.7 lb 005020

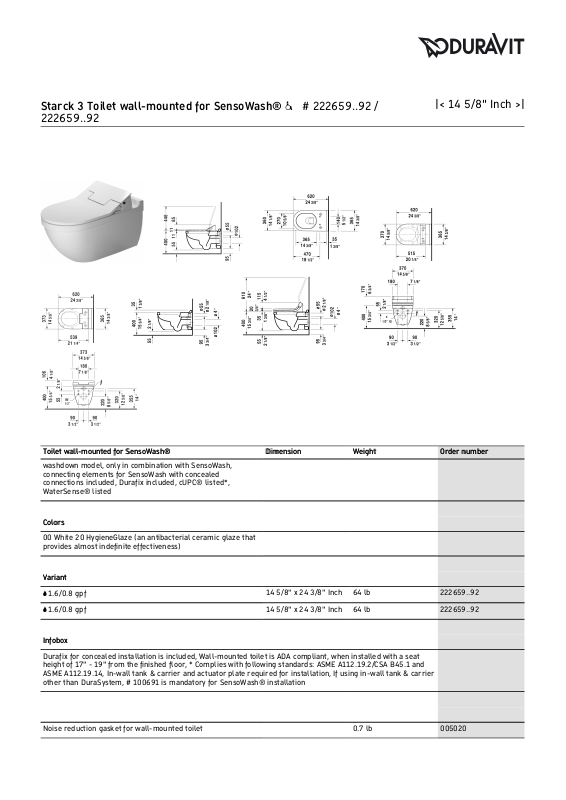

Starck 3 Toilet wall-mounted for SensoWash® Ÿ # 222659..92 /
222659..92
|< 14 5/8" Inch >|
Page 2
Actuator plate A1, for toilet, plastic mechanical actuation, for
surface mounted installation, dual flush, mounting frame,
mounting hardware included, push rods, front plate plastic
8 1/2" x 5 3/4" Inch 0.7 lb WD5008
Toilet in-wall tank & carrier, Standard WaterSense® listed, For
2"x4" and 2"x6" wall installation, for toilets with a projection of
<= 24 5/8", adjustable feet 0" - 9 1/2", SensoWash ready,
mechanical front flush actuation, includes in-wall tank, marking
of filling height, dual flush, insulated against condensation,
Scope of delivery, HDPE wall-mounted toilet connection bend
DN 90/90, PE wall-mounted toilet connection set DN 90, wallmounted mounting rods M12, mounting hardware included, 2
bolt caps, cUPC® listed*, Load capacity = 880 lbs
23 1/4" x 45 1/4" Inch 35.3 lb WD1022
Connecting set in combination with SensoWash shower-toilet
seat
100691
Pre-installation set in combination with SensoWash, for in-wall
carrier with horizontal support without shower toilet preinstallation/condiut pipe
005072
Suitable productsSuitable products
SensoWash® Starck C shower-toilet seat for ME by Starck,
Starck 2, Starck 3 and Darling New* Rear-, Lady- and
Comfortwash, individual adjustment of water-, air- and seat
surface temperature as well as nozzle position and jet strength,
heated seat, warm air dryer, power actuated lid and seat, night
light, 2 individually programmable user profiles, remote control
included, self-cleaning wand, on / off-button, with concealed
connections, Quick release: easy seat unit removal and
attachment, 14 5/8" x 20 1/4" Inch
14 5/8" x 20 1/4" Inch 610001
SensoWash® Slim shower-toilet seat for ME by Starck, Starck
2, Starck 3 and Darling New* Rear-, Lady- and Comfortwash,
with slow close, night light, remote control included, locking
function via remote control, self-cleaning wand, on / off-button,
with concealed connections, automatic drainage in periods of
prolonged disuse, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611000
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck 3 Toilet wall-mounted for SensoWash® Ÿ # 222659..92 /
222659..92
|< 14 5/8" Inch >|
