Page 1
Above-counter basinAbove-counter basin DimensionDimension WeightWeight Order numberOrder number
ground, with faucet deck, back side glazed, hardware included,
cUPC® listed*, 23 3/8" Inch
ColorsColors
00 White
VariantVariant
p with overflow 23 3/8" x 18 1/4" Inch 39.5 lb 0452600000
p p p with overflow 23 3/8" x 18 1/4" Inch 39.5 lb 0452600087
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, * When using this siphon please observe outlet
height from upper surface of finished floor to center of outlet in accordance with the technical specification sheet,
Installation with a distance to the wall is required
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Design Siphon 3.3 lb 005036

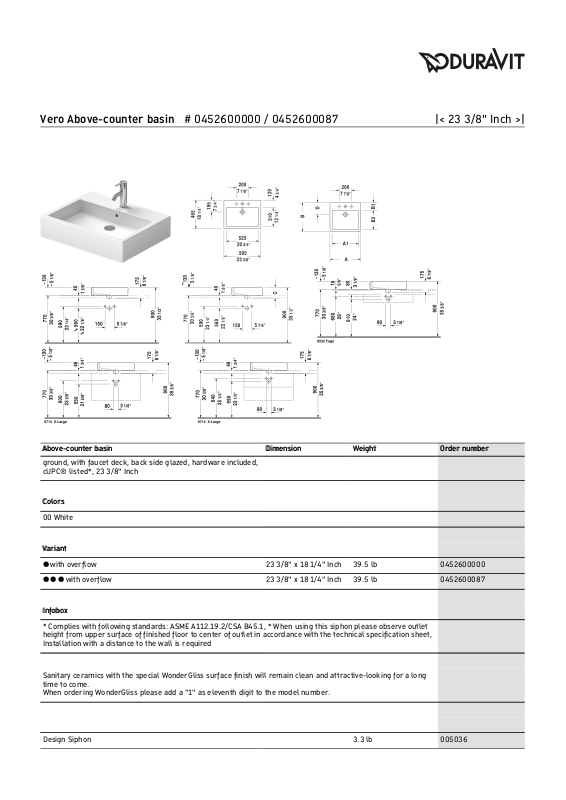

Vero Above-counter basin # 0452600000 / 0452600087 |< 23 3/8" Inch >|
Page 2
Suitable productsSuitable products
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 27 1/2" x 20 3/8" Inch
27 1/2" x 20 3/8" Inch VE5616
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 31 1/2" x 20 3/8" Inch
31 1/2" x 20 3/8" Inch VE5617
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 35 3/8" x 20 3/8" Inch
35 3/8" x 20 3/8" Inch VE5618
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 39 3/8" x 20 3/8" Inch
39 3/8" x 20 3/8" Inch VE5619
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Above-counter basin # 0452600000 / 0452600087 |< 23 3/8" Inch >|
