Page 1
Washbasin groundWashbasin ground DimensionDimension WeightWeight Order numberOrder number
with faucet deck, hardware included, wall-mounted, cUPC®
listed*, 31 1/2" Inch
ColorsColors
00 White
VariantVariant
p p p with overflow 31 1/2" x 18 1/2" Inch 48.1 lb 0454800025
p with overflow 31 1/2" x 18 1/2" Inch 48.1 lb 0454800027
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 35 3/8" x 17 5/8"
Inch
35 3/8" x 17 5/8" Inch VE5608
Vanity unit for console Compact 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 17 5/8"
Inch
39 3/8" x 17 5/8" Inch VE5609

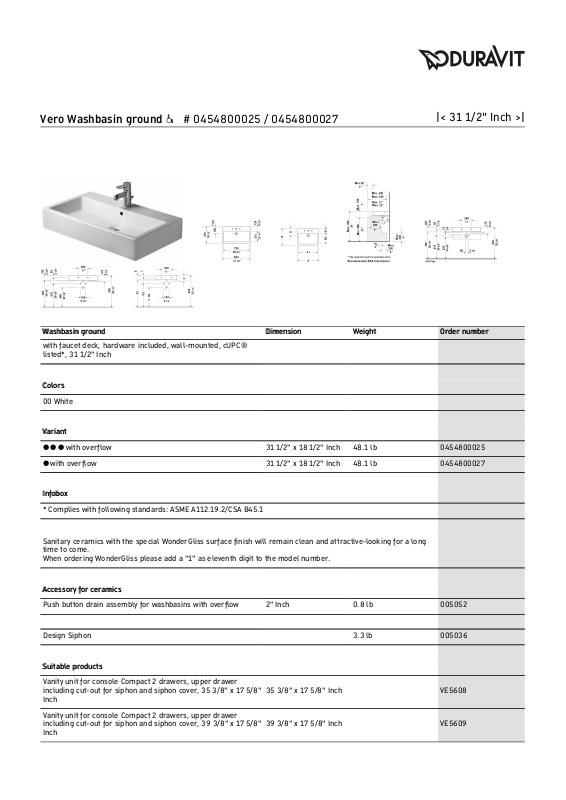

Vero Washbasin ground Ÿ # 0454800025 / 0454800027
|< 31 1/2" Inch >|
Page 2
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 31 1/2" x 20 3/8" Inch
31 1/2" x 20 3/8" Inch VE5617
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 35 3/8" x 20 3/8" Inch
35 3/8" x 20 3/8" Inch VE5618
Vanity unit for console 2 drawers, upper drawer including cutout for siphon and siphon cover, 39 3/8" x 20 3/8" Inch
39 3/8" x 20 3/8" Inch VE5619
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Washbasin ground Ÿ # 0454800025 / 0454800027
|< 31 1/2" Inch >|
