Page 1
Furniture washbasinFurniture washbasin DimensionDimension WeightWeight Order numberOrder number
with faucet deck, underside fully glazed, wall-mounted,
hardware included, cUPC® listed*, 31 1/2" Inch
ColorsColors
00 White
VariantVariant
p with overflow 31 1/2" x 18 1/2" Inch 48.1 lb 0454800000
p p p with overflow 31 1/2" x 18 1/2" Inch 48.1 lb 0454800087
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, Washbasin is not ADA compliant in combination
with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Towel rail square tube 1/2", Chrome, for washbasin # 045480,
235080
29 3/4" Inch 1.4 lb 003038

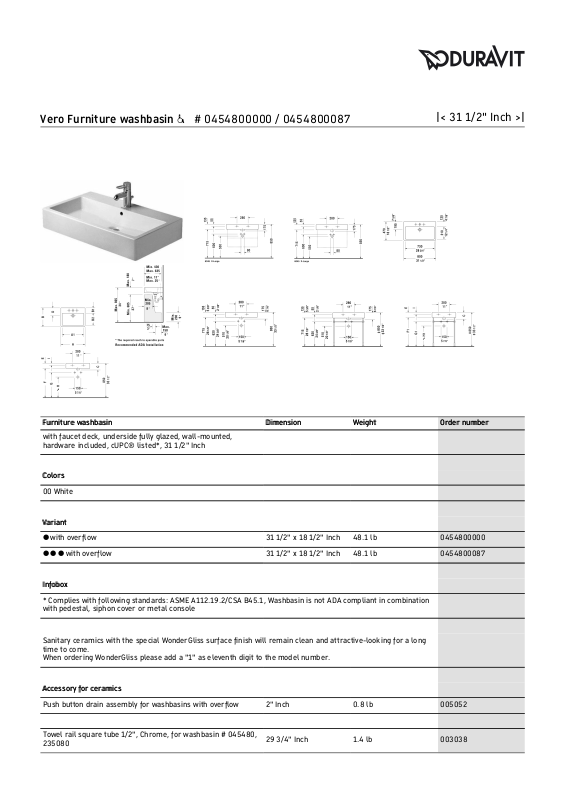

Vero Furniture washbasin Ÿ # 0454800000 / 0454800087
|< 31 1/2" Inch >|
Page 2
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Metal console height adjustable +2", for washbasin # 045480,
235080,
003066
Vanity unit wall-mounted 1 pull-out compartment, for Vero #
045480, 29 1/2" x 17 3/8" Inch
29 1/2" x 17 3/8" Inch KT6687
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045480, 29 1/2"
x 17 3/8" Inch
29 1/2" x 17 3/8" Inch KT6637
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), for Vero # 045480, 29 1/2" x 17 1/2" Inch
29 1/2" x 17 1/2" Inch XL6045
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045480, 29 1/2"
x 17 1/2" Inch
29 1/2" x 17 1/2" Inch XL6345
Vanity unit wall-mounted 1 pull-out compartment, pull-out
compartment including cut-out for siphon and siphon cover, for
Vero # 045480, 29 1/2" x 16 7/8" Inch
29 1/2" x 16 7/8" Inch VE6106
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Vero # 045480, 29 1/2"
x 16 7/8" Inch
29 1/2" x 16 7/8" Inch VE6206
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Vero Furniture washbasin Ÿ # 0454800000 / 0454800087
|< 31 1/2" Inch >|
