Toilet wall-mounted Duravit Rimless®Toilet wall-mounted Duravit Rimless® DimensionDimension WeightWeight Order numberOrder number
rimless, washdown model, cUPC® listed*, WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 5/8" x 21 1/4" Inch 56 lb 253809..92
© 1.6/0.8 gpf
14 5/8" x 21 1/4" Inch 56 lb 253809..92
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14, Wall-mounted toilet is ADA
compliant, when installed with a seat height of 17" - 19" from the finished floor, In-wall tank & carrier and
actuator plate required for installation
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Noise reduction gasket for wall-mounted toilet 0.7 lb 005064
Actuator plate A1, for toilet, plastic mechanical actuation, for
surface mounted installation, dual flush, mounting frame,
mounting hardware included, push rods, front plate plastic
8 1/2" x 5 3/4" Inch 0.7 lb WD5008
Toilet in-wall tank & carrier, Standard WaterSense® listed, For
2"x4" and 2"x6" wall installation, for toilets with a projection of
<= 24 5/8", adjustable feet 0" - 9 1/2", SensoWash ready,
mechanical front flush actuation, includes in-wall tank, marking
of filling height, dual flush, insulated against condensation,
Scope of delivery, HDPE wall-mounted toilet connection bend
DN 90/90, PE wall-mounted toilet connection set DN 90, wallmounted mounting rods M12, mounting hardware included, 2
bolt caps, cUPC® listed*, Load capacity = 880 lbs
23 1/4" x 45 1/4" Inch 35.3 lb WD1022
Suitable productsSuitable products
Toilet seat and cover hinges stainless steel, without slow close, 006371
DuraStyle Toilet wall-mounted Duravit Rimless® Ÿ #
253809..92 / 253809..92
|< 14 5/8" Inch >|
Page 2
Toilet seat and cover hinges stainless steel, removable, with
slow close,
006379

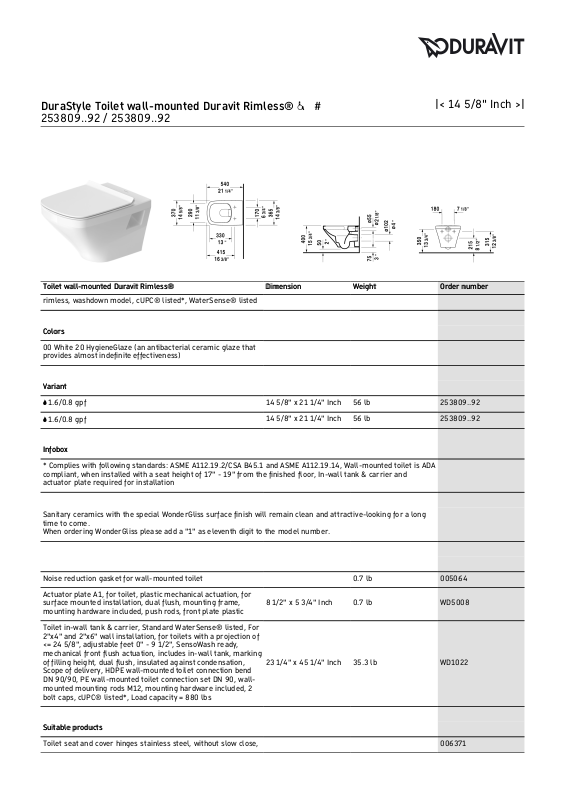

All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Toilet wall-mounted Duravit Rimless® Ÿ #
253809..92 / 253809..92
|< 14 5/8" Inch >|
