Page 1
One-Piece toiletOne-Piece toilet DimensionDimension WeightWeight Order numberOrder number
syphonic, 12" rough-in, vertical outlet, cUPC® listed*, 1.28 gpf
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© with single flush mechanism with side lever left 15 1/2" x 28 7/8" Inch 87 lb 011301..01
© with single flush mechanism with side lever right 15 1/2" x 28 7/8" Inch 87 lb 011301..82
© with single flush mechanism with side lever left 15 1/2" x 28 7/8" Inch 87 lb 011301..01
© with single flush mechanism with side lever right 15 1/2" x 28 7/8" Inch 87 lb 011301..82
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1

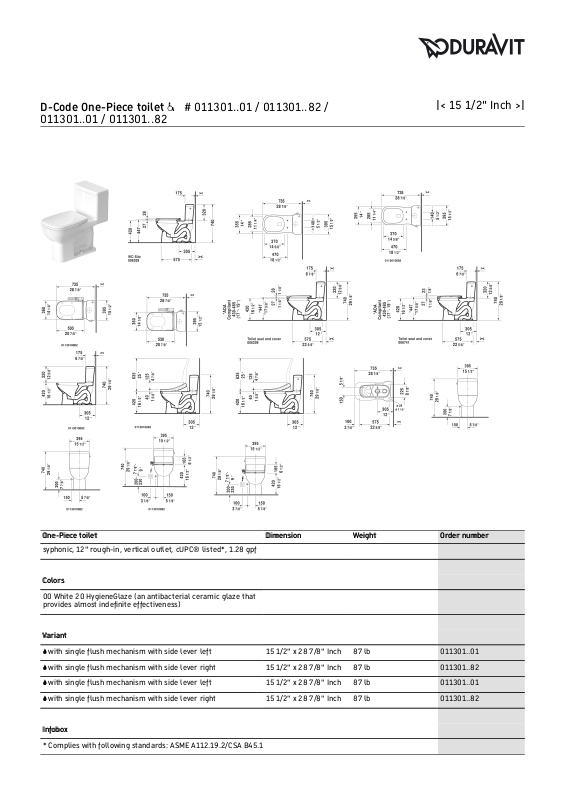

D-Code One-Piece toilet Ÿ # 011301..01 / 011301..82 /
011301..01 / 011301..82
|< 15 1/2" Inch >|
Page 2
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
15" Inch 1.1 lb 001431
Suitable productsSuitable products
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
006741
Toilet seat and cover elongated, hinges stainless steel,
removable, with slow close,
006209
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
D-Code One-Piece toilet Ÿ # 011301..01 / 011301..82 /
011301..01 / 011301..82
|< 15 1/2" Inch >|
