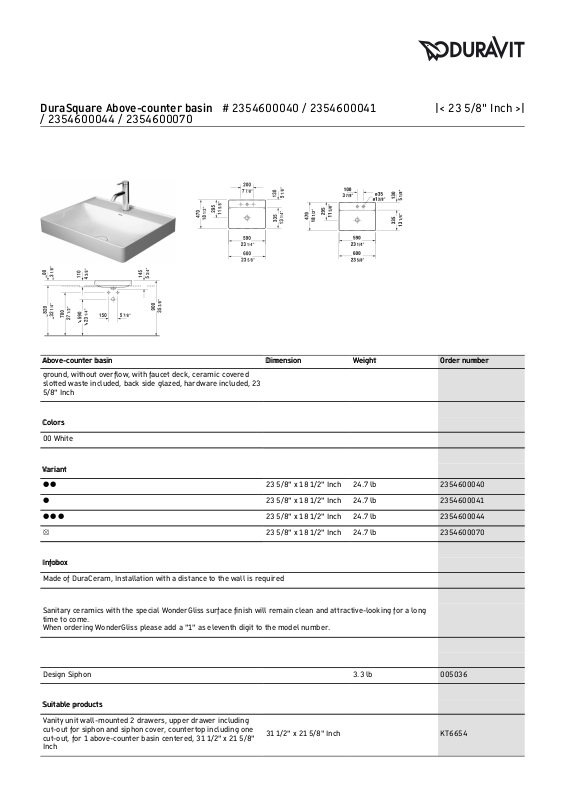

Page 1
Above-counter basinAbove-counter basin DimensionDimension WeightWeight Order numberOrder number
ground, without overflow, with faucet deck, ceramic covered
slotted waste included, back side glazed, hardware included, 23
5/8" Inch
ColorsColors
00 White
VariantVariant
p p 23 5/8" x 18 1/2" Inch 24.7 lb 2354600040
p 23 5/8" x 18 1/2" Inch 24.7 lb 2354600041
p p p 23 5/8" x 18 1/2" Inch 24.7 lb 2354600044
• 23 5/8" x 18 1/2" Inch 24.7 lb 2354600070
InfoboxInfobox
Made of DuraCeram, Installation with a distance to the wall is required
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch KT6654
DuraSquare Above-counter basin # 2354600040 / 2354600041
/ 2354600044 / 2354600070
|< 23 5/8" Inch >|
Page 2
Vanity unit wall-mounted 2 pull-out compartments, 1
countertop with one cut-out or two cut-outs, for 1 or 2 abovecounter basin(s), 55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch KT6697 B/L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch KT6655
Vanity unit wall-mounted 4 drawers, drawer beneath basin
including cut-out for siphon and siphon cover, 1 countertop with
one cut-out or two cut-outs, for 1 or 2 above-counter basin(s),
55 1/8" x 21 5/8" Inch
55 1/8" x 21 5/8" Inch KT6657 B/L/R
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, countertop including one
cut-out, for 1 above-counter basin centered, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch KT6656
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 31 1/2" x 21 5/8"
Inch
31 1/2" x 21 5/8" Inch XS4910
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4920
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 39
3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch KT6695
Vanity unit for console wall-mounted 1 pull-out compartment,
31 1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch XS4900
Vanity unit for console wall-mounted 1 pull-out compartment,
39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4901
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 39 3/8" x 21 5/8"
Inch
39 3/8" x 21 5/8" Inch XS4911
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 39 3/8" x 21 5/8" Inch
39 3/8" x 21 5/8" Inch XS4921
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 47
1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch KT6696
Vanity unit for console wall-mounted 4 drawers, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4914 L/R
Vanity unit for console floorstanding 2 pull-out compartments,
integrated legs with height adjustment, 47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4922
Vanity unit for console wall-mounted 2 drawers, upper drawer
including cut-out for siphon and siphon cover, 47 1/4" x 21 5/8"
Inch
47 1/4" x 21 5/8" Inch XS4912
Vanity unit for console wall-mounted 1 pull-out compartment,
47 1/4" x 21 5/8" Inch
47 1/4" x 21 5/8" Inch XS4902
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch BR102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch BR103C
DuraSquare Above-counter basin # 2354600040 / 2354600041
/ 2354600044 / 2354600070
|< 23 5/8" Inch >|
Page 3
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch BR106C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch BR107C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch DS102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch DS103C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch DS106C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch DS107C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch LC102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch LC103C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch LC106C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch LC107C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch XL102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch XL103C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch XL106C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch XL107C
Console for above-counter basin and vanity basin 1 console with
one cut-out, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch XV102C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 3/4" thickness, 21 5/8" Inch
21 5/8" Inch XV103C
Console for above-counter basin and vanity basin 1 console with
two cut-outs, price per section of 3 7/8", basic price until 31
1/2", 1 1/8" thickness, 21 5/8" Inch
21 5/8" Inch XV107C
DuraSquare Above-counter basin # 2354600040 / 2354600041
/ 2354600044 / 2354600070
|< 23 5/8" Inch >|
Page 4
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, for 1 above-counter basin centered, 31
1/2" x 21 5/8" Inch
31 1/2" x 21 5/8" Inch KT6694
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4927 B
Vanity unit for console floorstanding 4 pull-out compartments,
integrated legs with height adjustment, 63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4924 L/R
Vanity unit for console wall-mounted 4 drawers, upper drawer
including cut-out for siphon and siphon cover, 63" x 21 5/8"
Inch
63" x 21 5/8" Inch XS4917 B
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4907 B
Vanity unit for console wall-mounted 2 pull-out compartments,
63" x 21 5/8" Inch
63" x 21 5/8" Inch XS4904 R/L
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraSquare Above-counter basin # 2354600040 / 2354600041
/ 2354600044 / 2354600070
|< 23 5/8" Inch >|
