Washbasin corner modelWashbasin corner model DimensionDimension WeightWeight Order numberOrder number
without overflow, with faucet deck, with faucet hole, underside
fully glazed, hardware included, wall-mounted, cUPC® listed*,
25" Inch
ColorsColors
00 White
VariantVariant
p + 25" x 21 1/4" Inch 26.4 lb 0448450000
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, Pop-up waste cannot be used, Not available with
WonderGliss, Measurements represent width x depth
Slotted waste for washbasins without overflow 2" Inch 0.7 lb 005024
Suitable productsSuitable products
Soap dispenser for washbasins with hole for soap dispenser, for
washbasin # 044845, 044958, 046240, 045058, 044358,
030960, 030970, 032050, Ø 1 1/8" Inch
Ø 1 1/8" Inch 009972
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

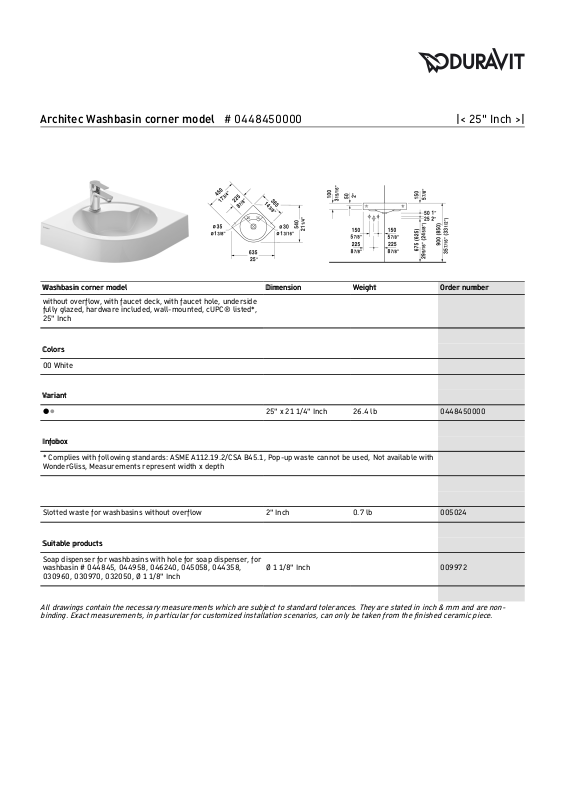

Architec Washbasin corner model # 0448450000 |< 25" Inch >|
