Page 1
Handrinse basinHandrinse basin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, underside fully glazed,
hardware included, wall-mounted, cUPC® listed*, 19 5/8" Inch
ColorsColors
00 White
VariantVariant
# # 19 5/8" x 10 1/4" Inch 17.6 lb 0751500000
p faucet hole on right side 19 5/8" x 10 1/4" Inch 17.6 lb 0751500008
p faucet hole on left side 19 5/8" x 10 1/4" Inch 17.6 lb 0751500009
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, In combination with siphon cover, a pop-up drain
can not be used, Not available with WonderGliss
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Suitable productsSuitable products
Siphon cover for # 075150, 6 1/4" x 6 1/2" Inch 6 1/4" x 6 1/2" Inch 086518
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonÂbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

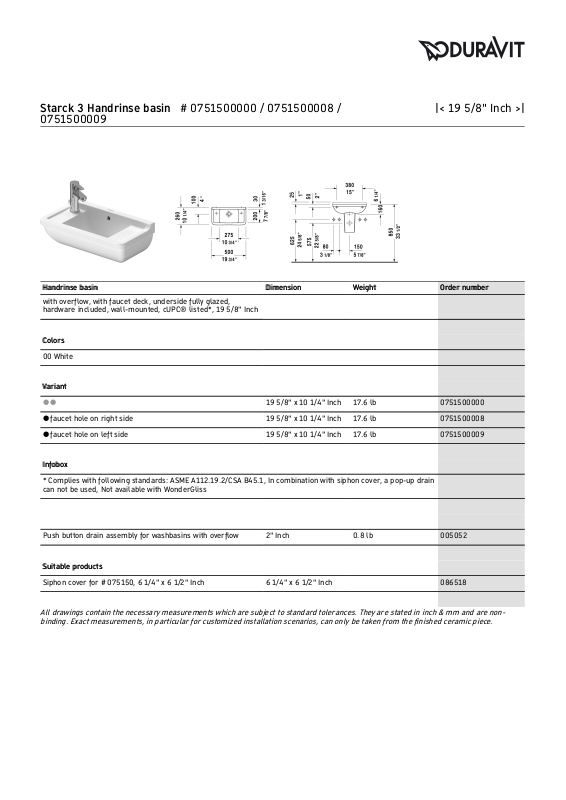

Starck 3 Handrinse basin # 0751500000 / 0751500008 /
0751500009
|< 19 5/8" Inch >|
