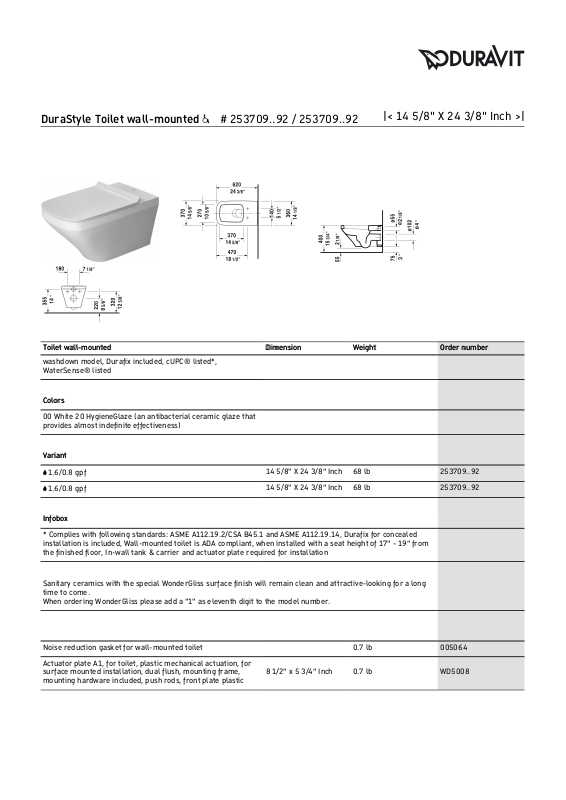

Page 1
Toilet wall-mountedToilet wall-mounted DimensionDimension WeightWeight Order numberOrder number
washdown model, Durafix included, cUPC® listed*,
WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.6/0.8 gpf
14 5/8" X 24 3/8" Inch 68 lb 253709..92
© 1.6/0.8 gpf
14 5/8" X 24 3/8" Inch 68 lb 253709..92
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1 and ASME A112.19.14, Durafix for concealed
installation is included, Wall-mounted toilet is ADA compliant, when installed with a seat height of 17" - 19" from
the finished floor, In-wall tank & carrier and actuator plate required for installation
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Noise reduction gasket for wall-mounted toilet 0.7 lb 005064
Actuator plate A1, for toilet, plastic mechanical actuation, for
surface mounted installation, dual flush, mounting frame,
mounting hardware included, push rods, front plate plastic
8 1/2" x 5 3/4" Inch 0.7 lb WD5008
DuraStyle Toilet wall-mounted Ÿ # 253709..92 / 253709..92
|< 14 5/8" X 24 3/8" Inch >|
Page 2
Toilet in-wall tank & carrier, Standard WaterSense® listed, For
2"x4" and 2"x6" wall installation, for toilets with a projection of
<= 24 5/8", adjustable feet 0" - 9 1/2", SensoWash ready,
mechanical front flush actuation, includes in-wall tank, marking
of filling height, dual flush, insulated against condensation,
Scope of delivery, HDPE wall-mounted toilet connection bend
DN 90/90, PE wall-mounted toilet connection set DN 90, wallmounted mounting rods M12, mounting hardware included, 2
bolt caps, cUPC® listed*, Load capacity = 880 lbs
23 1/4" x 45 1/4" Inch 35.3 lb WD1022
Suitable productsSuitable products
Toilet seat and cover removable, elongated, hinges stainless
steel, without slow close,
006051
Toilet seat and cover removable, elongated, hinges stainless
steel, with slow close,
006059
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Toilet wall-mounted Ÿ # 253709..92 / 253709..92
|< 14 5/8" X 24 3/8" Inch >|
