Page 1
Double furniture washbasinDouble furniture washbasin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, underside fully glazed,
hardware included, wall-mounted, cUPC® listed*, 51 1/8" Inch
ColorsColors
00 White
VariantVariant
p 51 1/8" x 19 1/8" Inch 84.7 lb 0332130000
p p p 51 1/8" x 19 1/8" Inch 84.7 lb 0332130030
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, When installing ceramics larger than 47 1/4", 2
sets of basin hardware # 6951000000 are required, When combined with pedestal or siphon cover, 2 of each are
mandatory, Washbasin is not ADA compliant in combination with pedestal, siphon cover or metal console, Not
available with WonderGliss
Space-saving siphon 1 1/4" Inch 0.9 lb 005076
Suitable productsSuitable products
Pedestal for # 030065, 030060, 030055, 030410, 030480,
030470, 033213, 030760, 030750, 28" x 8 1/4" Inch
28" x 8 1/4" Inch 086516
Siphon cover for # 030065, 030060, 030055, 030410, 030480,
030470, 033213, 030760, 030750, 6 3/4" x 11 1/4" Inch
6 3/4" x 11 1/4" Inch 086515
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 033213, 47 1/4" x 17 7/8" Inch
47 1/4" x 17 7/8" Inch KT6666
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Starck 3 # 033213, 47
1/4" x 17 7/8" Inch
47 1/4" x 17 7/8" Inch KT6646

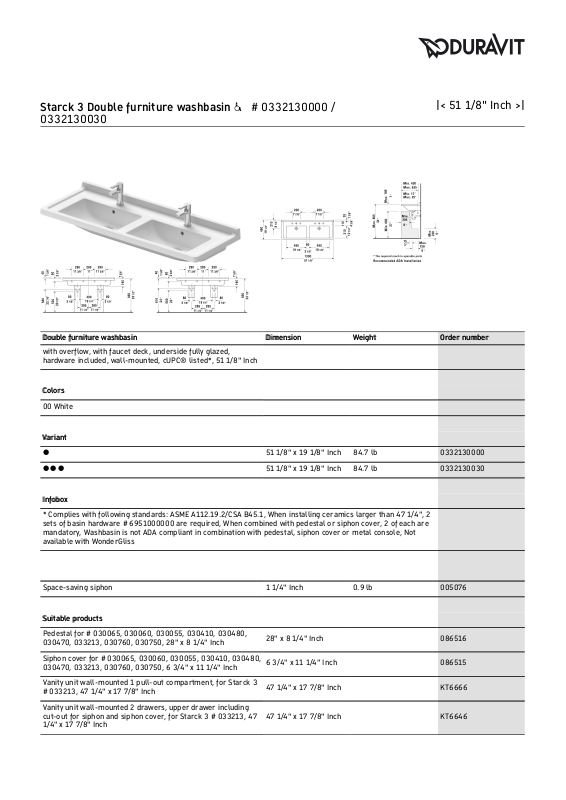

Starck 3 Double furniture washbasin Ÿ # 0332130000 /
0332130030
|< 51 1/8" Inch >|
Page 2
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Starck 3 # 033213, 47
1/4" x 18 1/2" Inch
47 1/4" x 18 1/2" Inch DS6490
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 033213, 47 1/4" x 18 1/2" Inch
47 1/4" x 18 1/2" Inch DS6390
Vanity unit wall-mounted 1 pull-out compartment,
compartment consists of glass dividers and 2 boxes
(small/large), for Starck 3 # 033213, 47 1/4" x 18 3/8" Inch
47 1/4" x 18 3/8" Inch XL6059
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for
Starck 3 # 033213, 47 1/4" x 18 1/2" Inch
47 1/4" x 18 1/2" Inch XL6538
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Starck 3 # 033213, 48"
x 18 1/2" Inch
48" x 18 1/2" Inch LC6267
Vanity unit wall-mounted 1 pull-out compartment, for Starck 3
# 033213, 48" x 18 1/2" Inch
48" x 18 1/2" Inch BR4044
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for Starck 3 # 033213, 48"
x 18 1/2" Inch
48" x 18 1/2" Inch BR4144
Vanity unit floorstanding 2 pull-out compartments, upper
drawer including cut-out for siphon and siphon cover, for
Starck 3 # 033213, 48" x 18 1/2" Inch
48" x 18 1/2" Inch BR4424
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
Starck 3 Double furniture washbasin Ÿ # 0332130000 /
0332130030
|< 51 1/8" Inch >|
