Toilet floorstanding for SensoWash®Toilet floorstanding for SensoWash® DimensionDimension WeightWeight Order numberOrder number
back-to-wall, washdown model, hardware included, horizontal
outlet, only in combination with SensoWash, connecting
elements for SensoWash with concealed connections included,
cUPC® listed*, WaterSense® listed
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.28/0.8 gpf, ADA height
14 5/8" x 23 5/8" Inch 63.9 lb 216959..92
© 1.28/0.8 gpf, ADA height
14 5/8" x 23 5/8" Inch 63.9 lb 216959..92
InfoboxInfobox
In-wall tank and actuator plate are required for installation, * Complies with following standards: ASME
A112.19.2/CSA B45.1 and ASME A112.19.14, 1/2" drop-ear elbow is necessary for installation (not included with
delivery)
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Connecting set in combination with SensoWash shower-toilet
seat
100691
Pre-installation set in combination with SensoWash, for in-wall
carrier with horizontal support without shower toilet preinstallation/condiut pipe
005072
Vario connector set incl. offset Ø 4 3/8" Inch 3.3 lb 001422

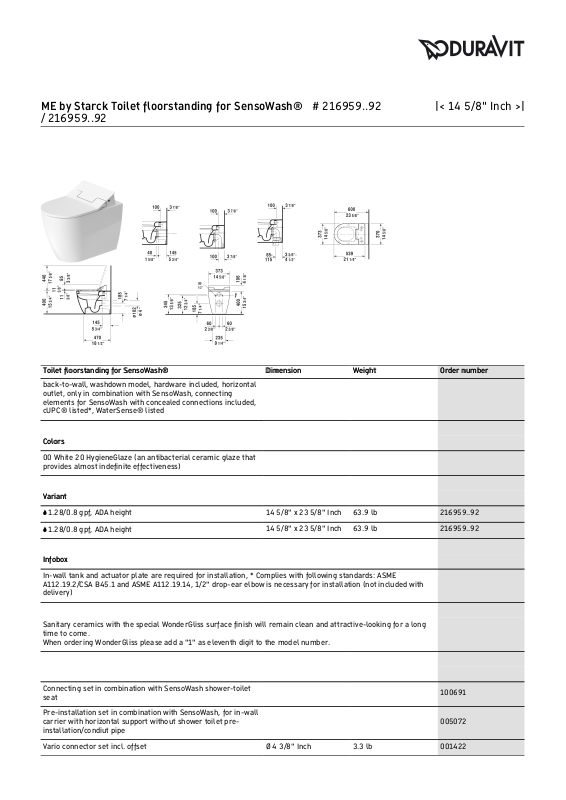

ME by Starck Toilet floorstanding for SensoWash® # 216959..92
/ 216959..92
|< 14 5/8" Inch >|
Page 2
Suitable productsSuitable products
SensoWash® Slim shower-toilet seat for ME by Starck, Starck
2, Starck 3 and Darling New* Rear-, Lady- and Comfortwash,
with slow close, night light, remote control included, locking
function via remote control, self-cleaning wand, on / off-button,
with concealed connections, automatic drainage in periods of
prolonged disuse, 14 3/4" x 21 1/4" Inch
14 3/4" x 21 1/4" Inch 611000
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck Toilet floorstanding for SensoWash® # 216959..92
/ 216959..92
|< 14 5/8" Inch >|
