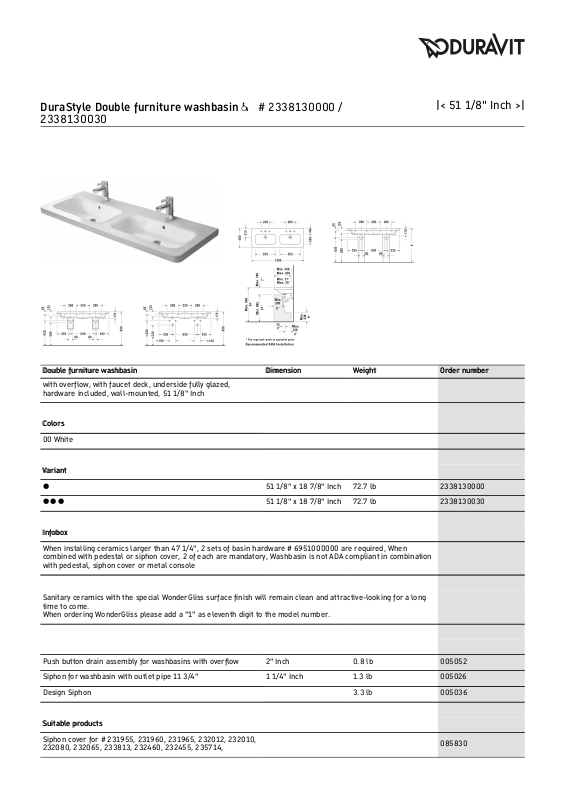

Page 1
Double furniture washbasinDouble furniture washbasin DimensionDimension WeightWeight Order numberOrder number
with overflow, with faucet deck, underside fully glazed,
hardware included, wall-mounted, 51 1/8" Inch
ColorsColors
00 White
VariantVariant
p 51 1/8" x 18 7/8" Inch 72.7 lb 2338130000
p p p 51 1/8" x 18 7/8" Inch 72.7 lb 2338130030
InfoboxInfobox
When installing ceramics larger than 47 1/4", 2 sets of basin hardware # 6951000000 are required, When
combined with pedestal or siphon cover, 2 of each are mandatory, Washbasin is not ADA compliant in combination
with pedestal, siphon cover or metal console
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Siphon for washbasin with outlet pipe 11 3/4" 1 1/4" Inch 1.3 lb 005026
Design Siphon 3.3 lb 005036
Suitable productsSuitable products
Siphon cover for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 233813, 232460, 232455, 235714,
085830
DuraStyle Double furniture washbasin Ÿ # 2338130000 /
2338130030
|< 51 1/8" Inch >|
Page 2
Pedestal for # 231955, 231960, 231965, 232012, 232010,
232080, 232065, 233813, 232460, 232455, 235714,
085829
Vanity unit wall-mounted 1 pull-out compartment, for DuraStyle
# 233813, 48 3/8" x 17 3/4" Inch
48 3/8" x 17 3/4" Inch DS6398
Vanity unit wall-mounted 2 drawers, upper drawer including
cut-out for siphon and siphon cover, for DuraStyle # 233813, 48
3/8" x 17 3/4" Inch
48 3/8" x 17 3/4" Inch DS6498
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
DuraStyle Double furniture washbasin Ÿ # 2338130000 /
2338130030
|< 51 1/8" Inch >|
