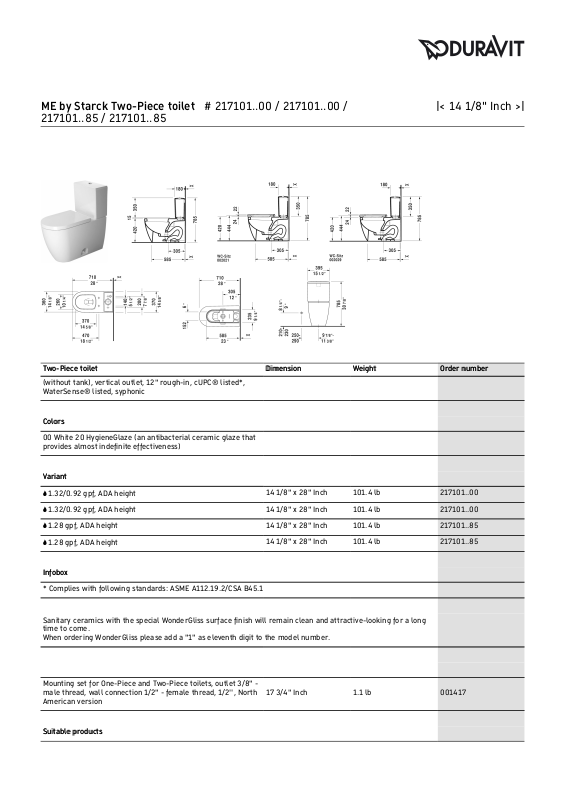

Page 1
Two-Piece toiletTwo-Piece toilet DimensionDimension WeightWeight Order numberOrder number
(without tank), vertical outlet, 12" rough-in, cUPC® listed*,
WaterSense® listed, syphonic
ColorsColors
00 White 20 HygieneGlaze (an antibacterial ceramic glaze that
provides almost indefinite effectiveness)
VariantVariant
© 1.32/0.92 gpf, ADA height
14 1/8" x 28" Inch 101.4 lb 217101..00
© 1.32/0.92 gpf, ADA height
14 1/8" x 28" Inch 101.4 lb 217101..00
© 1.28 gpf, ADA height
14 1/8" x 28" Inch 101.4 lb 217101..85
© 1.28 gpf, ADA height
14 1/8" x 28" Inch 101.4 lb 217101..85
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Mounting set for One-Piece and Two-Piece toilets, outlet 3/8" male thread, wall connection 1/2" - female thread, 1/2'', North
American version
17 3/4" Inch 1.1 lb 001417
Suitable productsSuitable products
ME by Starck Two-Piece toilet # 217101..00 / 217101..00 /
217101..85 / 217101..85
|< 14 1/8" Inch >|
Page 2
Tank for bottom left supply, WaterSense® listed, 15 3/8" x 7
1/8" Inch
15 3/8" x 7 1/8" Inch 093820
Toilet seat and cover elongated, hinges stainless steel, without
slow close,
002021
Toilet seat and cover elongated, hinges stainless steel,
removable, with slow close,
002029
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.
ME by Starck Two-Piece toilet # 217101..00 / 217101..00 /
217101..85 / 217101..85
|< 14 1/8" Inch >|
