Washbasin groundWashbasin ground DimensionDimension WeightWeight Order numberOrder number
with faucet deck, hardware included, wall-mounted, cUPC®
listed*, 47 1/4" Inch
ColorsColors
00 White 08 Black
VariantVariant
p _ _ p with overflow 47 1/4" x 18 1/2" Inch 73.9 lb 045412..26
InfoboxInfobox
* Complies with following standards: ASME A112.19.2/CSA B45.1, When installing ceramics larger than 39 3/8", 2
sets of basin hardware # 6951000000 are required, Recommended in connection with two single lever basin
mixers, When mounting 2 one-hole faucets, required space in between is # 045412, 235012 = 22 1/4" and #
045410, 235010 = 18 1/4"
Sanitary ceramics with the special WonderGliss surface finish will remain clean and attractive-looking for a long
time to come.
When ordering WonderGliss please add a "1" as eleventh digit to the model number.
Accessory for ceramicsAccessory for ceramics
Push button drain assembly for washbasins with overflow 2" Inch 0.8 lb 005052
Suitable productsSuitable products
Vanity unit wall-mounted 1 pull-out compartment, countertop
including one cut-out, 48 5/8" x 22 1/4" Inch
48 5/8" x 22 1/4" Inch S19528 L/M/R
All drawings contain the necessary measurements which are subject to standard tolerances. They are stated in inch & mm and are nonbinding. Exact measurements, in particular for customized installation scenarios, can only be taken from the finished ceramic piece.

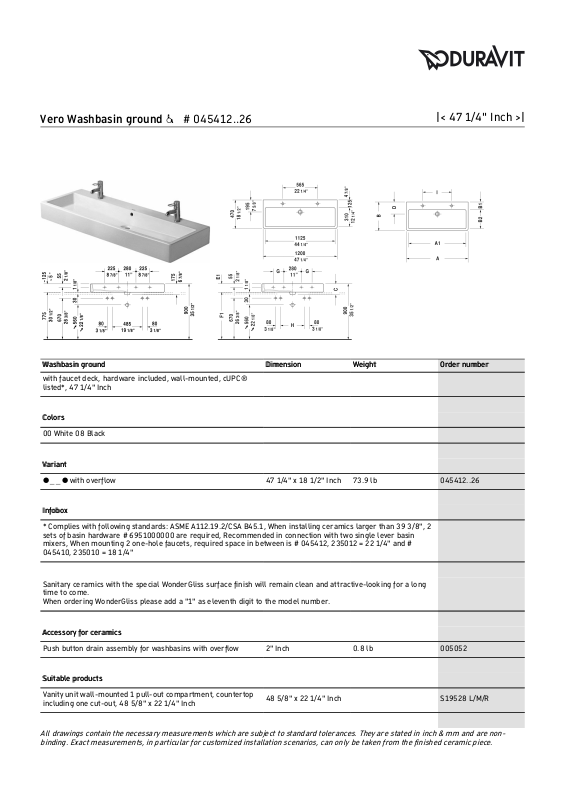

Vero Washbasin ground Ÿ # 045412..26
|< 47 1/4" Inch >|
